SKU: 16006-FAG

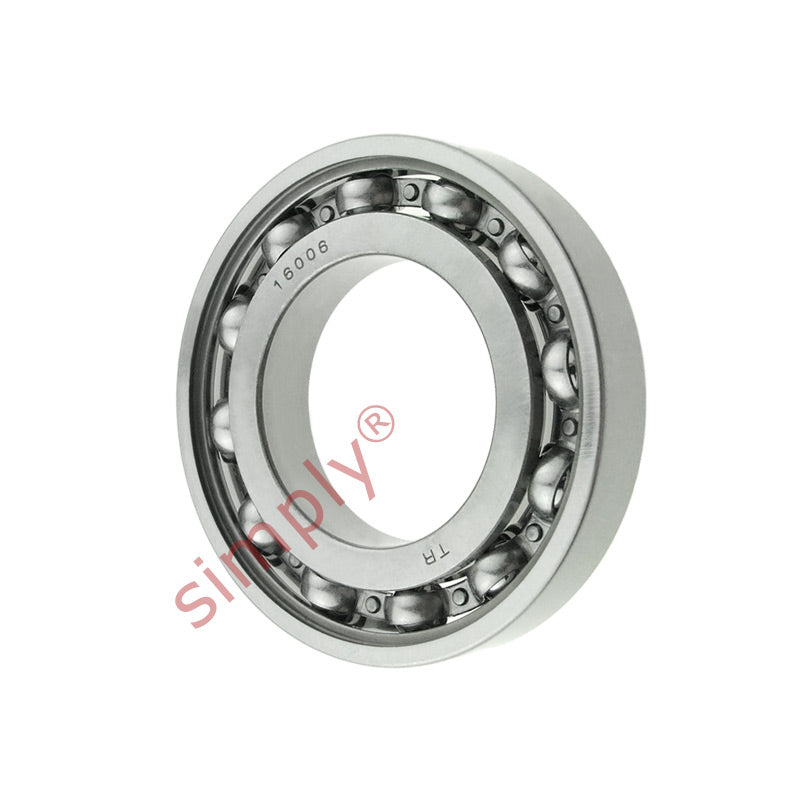

FAG 16006 Open Deep Groove Ball Bearing 30x55x9mm
FAG 16006 Open Deep Groove Ball Bearing 30x55x9mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
10+
CHF 9.43
19+
CHF 8.90
29+
CHF 8.80
39+
CHF 8.69
49+
CHF 8.59
74+
CHF 8.48
99+
CHF 7.95
199+
CHF 7.84
249+
CHF 7.74
499+
CHF 7.63
999+
CHF 7.42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 9mm |
| Dynamic load C | 11.9 kN |
| Static load Co | 7.35 kN |
| Fatigue load limit Pu | 0.31 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 17000 rpm |
| Mass | 0.085 kg |
| d1 | 37.7mm |
| D1 | 47.3mm |
| r1r2 min | 0.3mm |
| da min | 32mm |
| Da max | 53mm |
| ra max | 0.3mm |
| Calc factor Kr | 0.02 |
| Calc factor | 15 |
