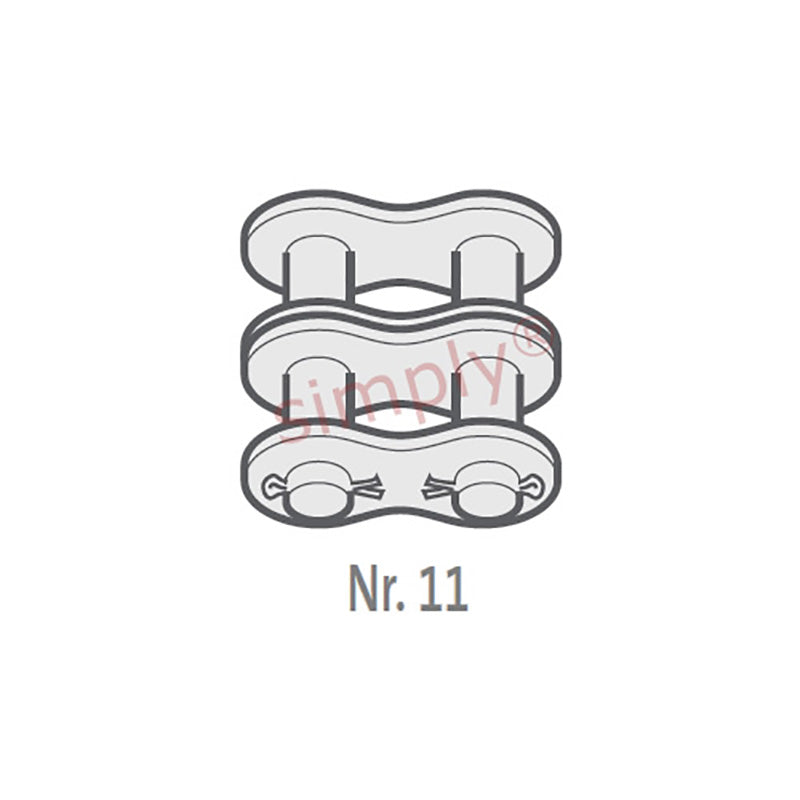

• Renold Synergy 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
1 1

SKU: 160-2-SYN-NO11-RENOLD

Renold Synergy 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch

Renold Synergy 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
CHF 441.00 ex VAT
CHF 441.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 352.90
5+ CHF 333.07
10+ CHF 329.11
29+ CHF 325.14
49+ CHF 321.18
75+ CHF 317.21
100+ CHF 297.39
200+ CHF 293.42
250+ CHF 289.46
500+ CHF 285.49
1000+ CHF 277.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO11D_DESC
Brand / Quality:
Renold - High Quality
Pitch:
50.8mm = 2 inch
Technical
Pitch (A) 2 inch
Pitch (A) 50.8mm
Inside Width min (B) 31.55mm
Roller Diameter max (C) 28.58mm
Plate Height max (D) 48.26mm
Plate Width Inner max (E) 6.35mm
Plate Width Outer max (F) 6.35mm
Pin Diameter max (G) 14.29mm
Pin Length max (H2) 121.6mm
Connecting Link Extension max (J) 6.5mm
Transverse Pitch nom (K) 58.55mm
ISO606 Tensile Strength min 446000 N
Weight 0.87kg/m
