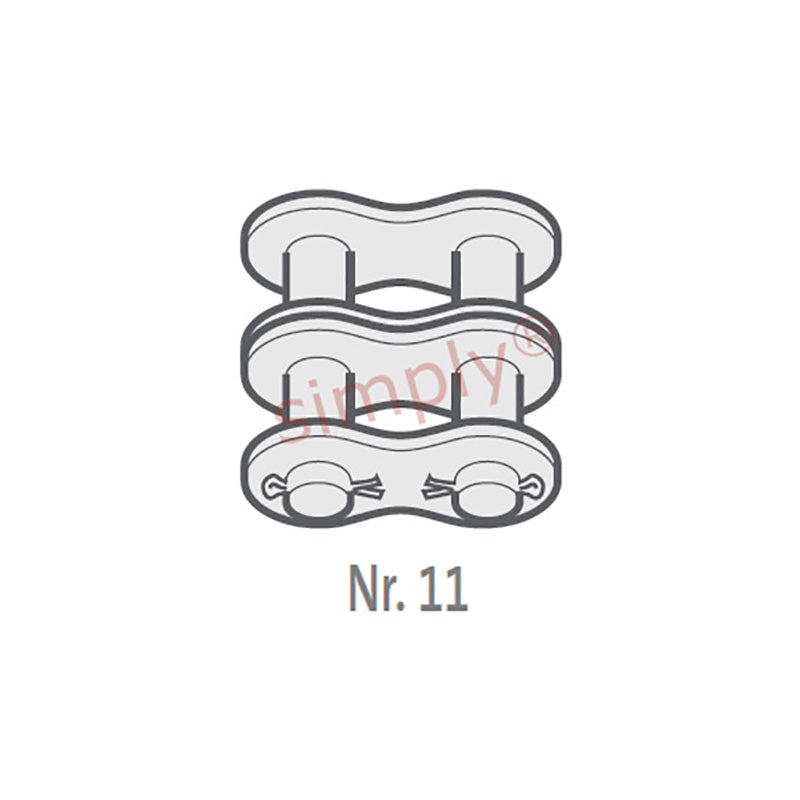

• Renold SD 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
1 1

SKU: 160-2-SD-NO11-RENOLD

Renold SD 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch

Renold SD 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
CHF 82.00 ex VAT
CHF 82.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 64.92
5+ CHF 61.27
10+ CHF 60.54
29+ CHF 59.81
49+ CHF 59.08
75+ CHF 58.35
100+ CHF 54.71
200+ CHF 53.98
250+ CHF 53.25
500+ CHF 52.52
1000+ CHF 51.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO11D_DESC
Brand / Quality:
Renold - High Quality
Pitch:
50.8mm = 2 inch
Technical
Pitch (A) 2 inch
Pitch (A) 50.8mm
Inside Width min (B) 31.55mm
Roller Diameter max (C) 28.58mm
Plate Height max (D) 48mm
Plate Width Inner max (E) 6.4mm
Plate Width Outer max (F) 6.4mm
Pin Diameter max (G) 14.27mm
Pin Length max (H2) 122.9mm
Connecting Link Extension max (J) 5.19999999999999mm
Transverse Pitch nom (K) 58.55mm
ISO606 Tensile Strength min 446000 N
Weight 0.87kg/m
