SKU: 132SPB5-MB

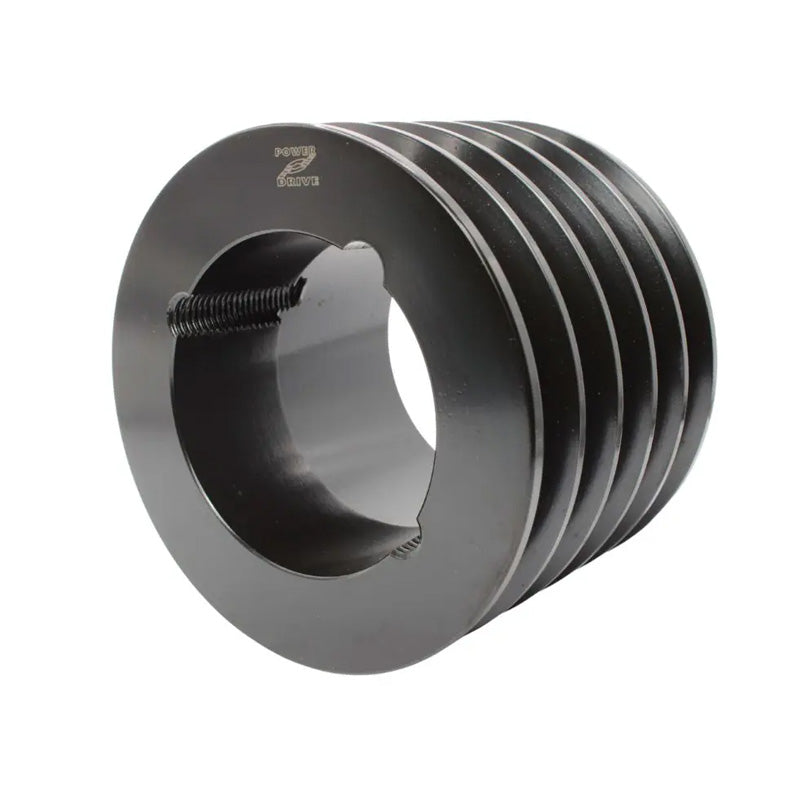

132X5SPB 132mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
132X5SPB 132mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
Regular price
CHF 43.00
ex VAT
Regular price
Sale price
CHF 43.00
ex VAT
In stock
Price Break
3+
CHF 33.97
5+
CHF 32.06
9+
CHF 31.68
19+
CHF 31.30
49+
CHF 30.92
74+
CHF 30.54
99+
CHF 28.63
199+
CHF 28.25
249+
CHF 27.86
499+
CHF 27.48
999+
CHF 26.72
Quantity
Couldn't load pickup availability
Description
Description
|
SPB Section V Belt Pulleys: Manufactured from fine grain gray cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184. Speeds: Circumferential speeds of up to 40 m/s are permissible. All our pulleys are balanced to grade Q6.3 or better. Pulleys with a weight of 100kg and above are dynamically balanced (two planes). All pulleys with a weight less than 100kg are statically machine balanced (one plane). Suitability: Suitable for use with B section, BX Section, SPB, XPB and 5V section V-Belts Benefits: Cost effective replacement |
- Brand / Quality:
- Major Brand - High Quality
- Grooves:
- 5
- Outside Diameter:
- 139mm
- Pitch Diameter:
- 132mm
- Max Bore:
- 60mm
Technical
Technical

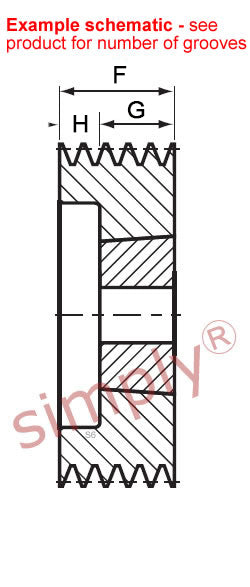

| Number of Grooves | 5 |
|---|---|
| Bush | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a> |
| Pitch Diameter B | 132mm |
| Overall Outer Diameter C | 139mm |
| Max Bore A | 60mm |
| Overall Sheave Depth F | 101mm |
| Bush Seat Length G | 45mm |
| Inner Recess Length H | 56mm |
