SKU: 1308.MB
1308 Open Self Aligning Ball Bearing with Cylindrical Bore 40x90x23mm
1308 Open Self Aligning Ball Bearing with Cylindrical Bore 40x90x23mm
Regular price
CHF 47.00
ex VAT
Regular price
Sale price
CHF 47.00
ex VAT
In stock
Price Break
10+
CHF 37.25
19+
CHF 35.16
29+
CHF 34.74
39+
CHF 34.32
49+
CHF 33.90
74+
CHF 33.48
99+
CHF 31.39
199+
CHF 30.97
249+
CHF 30.55
499+
CHF 30.13
999+
CHF 29.30
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard

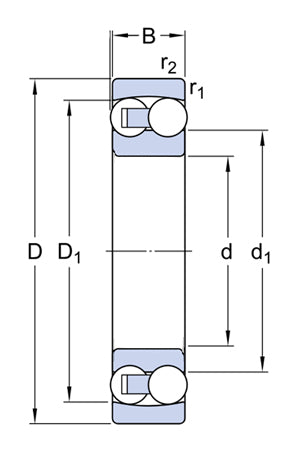

Technical
Technical
| d | 40 |
|---|---|
| D | 90 |
| B | 23 |
| r1r2 min | 1.5 |
| Dynamic load | 33.8 kn |
| Static load | 11.3 kN |
| Cu | 0.5 kN |
| Reference speed | 7400 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.72kg |
| e | 0.25 |
| Fa/Fr = e | 2.5 |
| Fa/Fr > e | 3.9Y0 |
| 2.6 | N/A |
