Renold SYNO 12B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold SYNO 12B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Out of stock
Description
Description

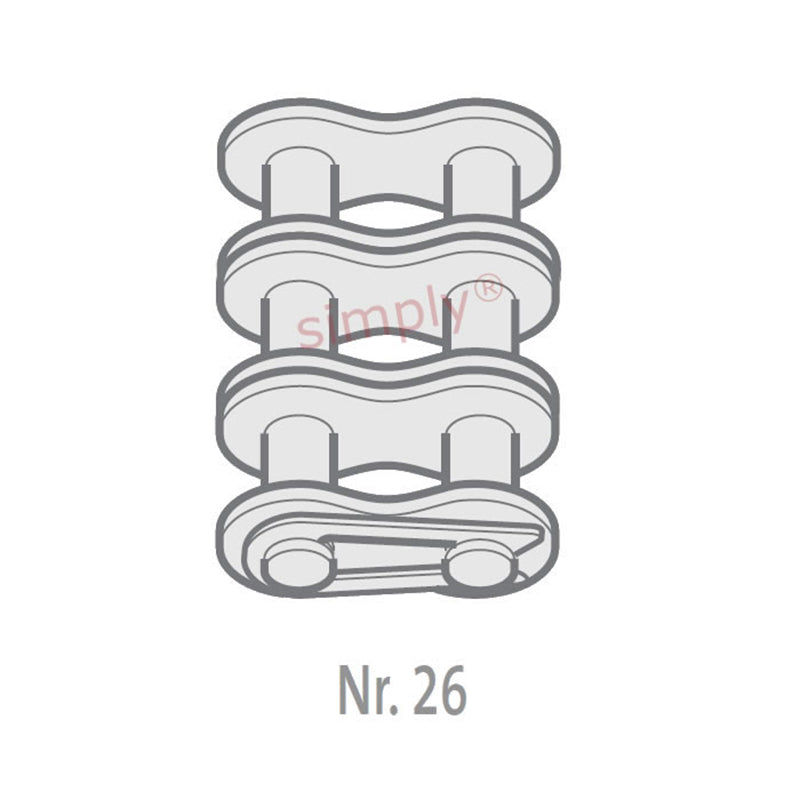

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16mm |
| Plate Width Inner max (E) | 1.81mm |
| Plate Width Outer max (F) | 1.81mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H1) | 60.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.015kg/m |
