SKU: 1240-40G-RHP

RHP 1240-40G Spherical Outer Flat Back Bearing Insert 40mm Bore 80mm Outside Diameter

Name: RHP 1240-40G Spherical Outer Flat Back Bearing Insert 40mm Bore 80mm Outside Diameter
Brand: RHP
SKU: 1240-40G-RHP
Price: 44.00 CHF
Availability: InStock

CHF 44.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 35.10

20+ CHF 33.13

30+ CHF 32.73

40+ CHF 32.34

50+ CHF 31.94

75+ CHF 31.55

100+ CHF 29.58

200+ CHF 29.18

250+ CHF 28.79

500+ CHF 28.39

1000+ CHF 27.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1000 G Series: Flat back bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 80mm
Style:: 1240

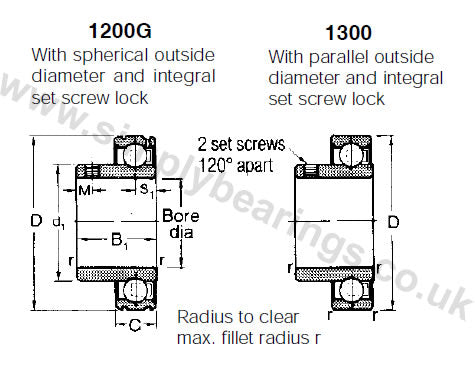

Technical

Bore	40mm
D	80mm
C	18mm
B1	41.18mm
s1	11.05mm
d1	52.7mm
M	7.95mm
r	1mm
Dynamic load Cr	32500 N
Static load Cor	19900 N
Rec max speed	4000 rpm
Weight	0.54 kg
