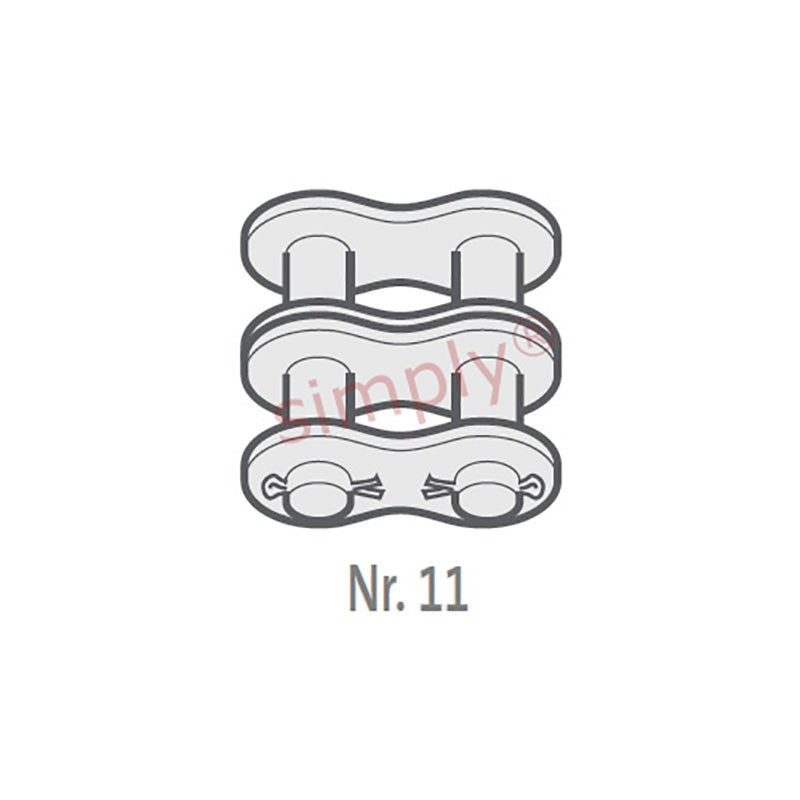

• Renold Blue Box 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
1 1

SKU: 120-2-BB-NO11-RENOLD

Renold Blue Box 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch

Renold Blue Box 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
CHF 99.00 ex VAT
CHF 99.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 78.81
5+ CHF 74.38
10+ CHF 73.50
29+ CHF 72.61
49+ CHF 71.73
75+ CHF 70.84
100+ CHF 66.41
200+ CHF 65.53
250+ CHF 64.64
500+ CHF 63.76
1000+ CHF 61.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO11D_DESC
Brand / Quality:
Renold - High Quality
Pitch:
38.1mm = 1.5 (1-1/2) inch
Technical
Pitch (A) 1.5 inch
Pitch (A) 38.1mm
Inside Width min (B) 25.23mm
Roller Diameter max (C) 22.23mm
Plate Height max (D) 36.2mm
Plate Width Inner max (E) 4.8mm
Plate Width Outer max (F) 4.8mm
Pin Diameter max (G) 11.11mm
Pin Length max (H2) 94.7mm
Connecting Link Extension max (J) 5.3mm
Transverse Pitch nom (K) 45.44mm
ISO606 Tensile Strength min 250000 N
Weight 0.156kg/m
