SKU: 1150-50DEC-RHP

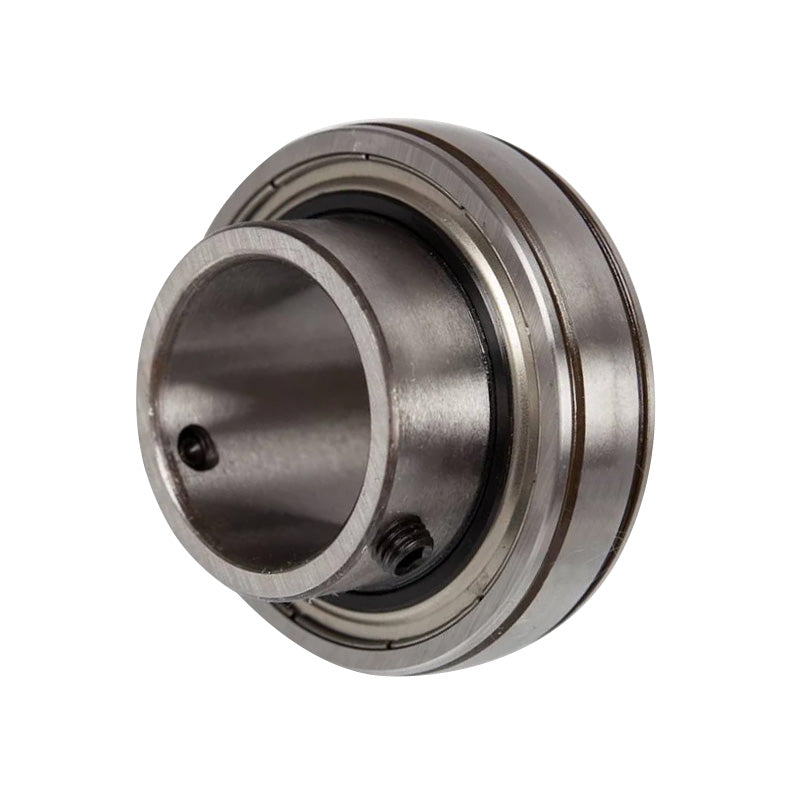

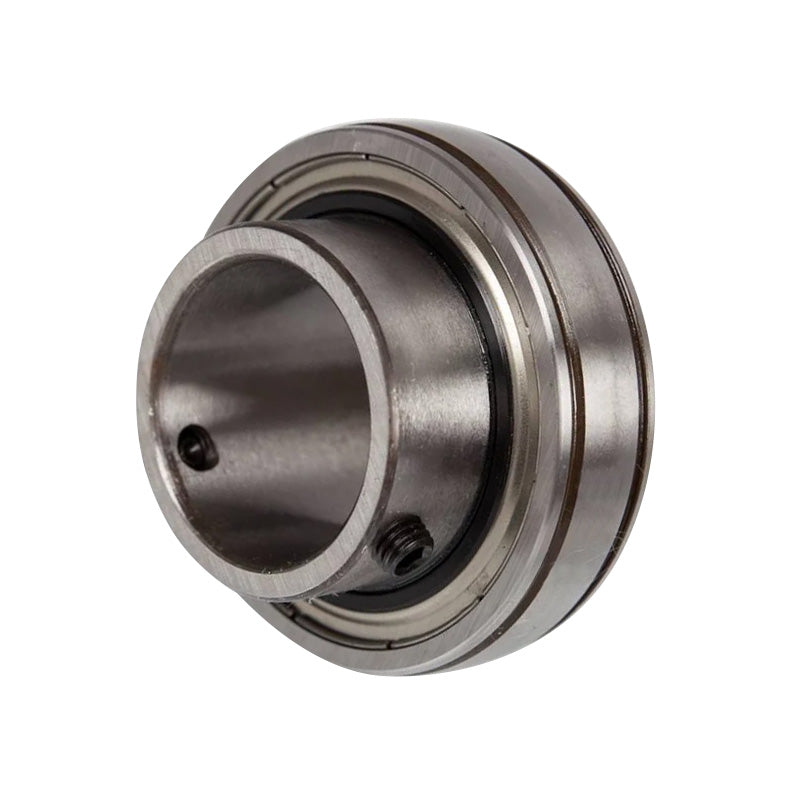

RHP 1150-50DEC Parallel Outer Full Width Bearing Insert 50mm Bore 90mm Outside Diameter

Name: RHP 1150-50DEC Parallel Outer Full Width Bearing Insert 50mm Bore 90mm Outside Diameter
Brand: RHP
SKU: 1150-50DEC-RHP
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1000-DEC Series: Full width bearing insert with parallel outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, eccentric collar fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 90mm
Style:: 1150

Technical

Bore	50mm
D	90mm
C	20mm
B3	62.7mm
s2	24.65mm
d2	69.85mm
r	1mm
Dynamic load Cr	35000 N
Static load Cor	23200 N
Rec max speed	3400 rpm
Weight	1.19 kg
