SKU: 112040/112085C-GAMET

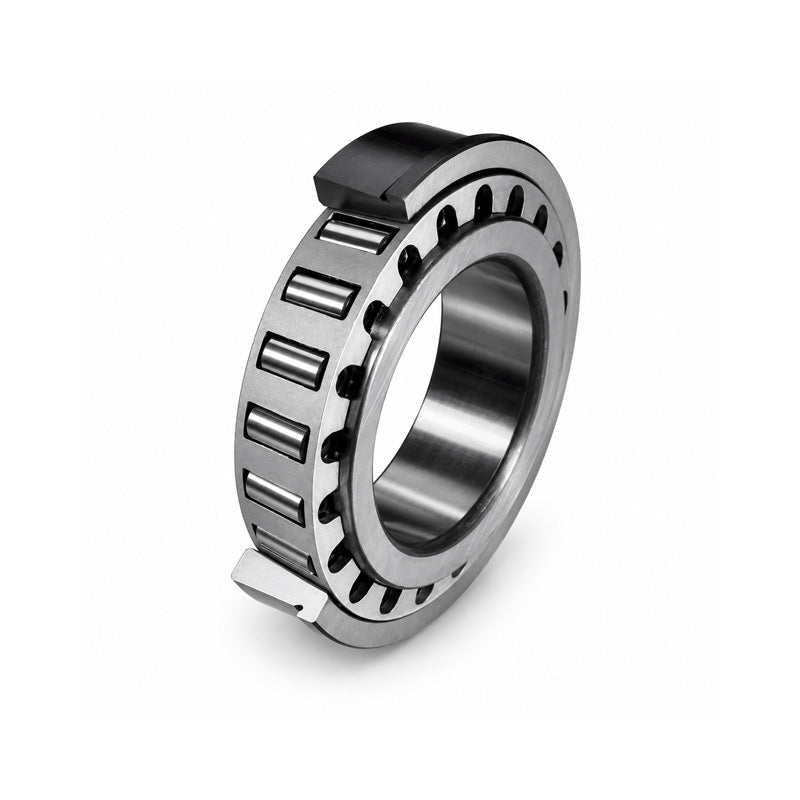

Gamet 112040/112085C Super Precision Tapered Roller Bearing Flanged Cup Type 40x85x24.5mm - Allow 7-10 Days
Gamet 112040/112085C Super Precision Tapered Roller Bearing Flanged Cup Type 40x85x24.5mm - Allow 7-10 Days
Out of stock
Description
Description
|
Super Precision Tapered Roller Bearing Flanged Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Made from high quality bearing materials, the basic single row bearing can be used in light to medium loaded applications, and provides a simple, cost-effective arrangement. The flanged cup design enables through boring of the housing for simplicity and accuracy. Cone Bore Run-out tolerances range from 0.5 microns to 1.5 microns. Quality assured to BS EN ISO 9001:2000 standards. Benefits: Cost-effective, high quality bearing materials, quality assured. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 85mm
- Width:
- 24.5mm
Technical
Technical
| d | 40.000mm |
|---|---|
| D | 85.000mm |
| T | 20.63mm |
| C | 17.46mm |
| B | 24.50mm |
| F | 3.17mm |
| G | 7.93mm |
| H | 4.76mm |
| J | 89.76mm |
| da | 55mm |
| r | 2.00mm |
| R | 2.00mm |
| Radial static stiffness | 44 daN/µ |
| Axial static stiffness | 7 daN/µ |
| Radial basic rating 10000hrs@500rpm | 1145 daN |
| Axial basic rating 10000hrs@500rpm | 600 daN |
| Max speed | 8200 rpm |
| Weight | 0.530kg |
| Cone | 112040 |
| Cup | 112085C |
