• RHP 1075-2-7/8DECG Spherical Outer Full Width Bearing Insert 2-7/8 inch Bore 130mm Outside Diameter
1 1

SKU: 1075-2.7/8DECG-RHP

RHP 1075-2-7/8DECG Spherical Outer Full Width Bearing Insert 2-7/8 inch Bore 130mm Outside Diameter

RHP 1075-2-7/8DECG Spherical Outer Full Width Bearing Insert 2-7/8 inch Bore 130mm Outside Diameter

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

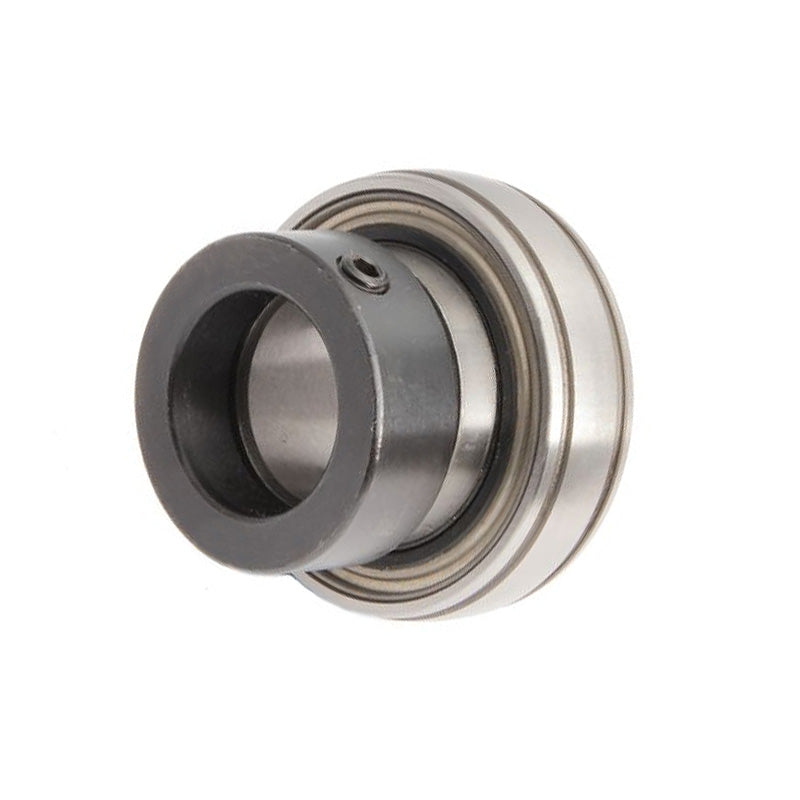

RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
73.03mm = 2.875 (2-7/8) inch
Outside Diameter:
130mm
Style:
1075
Technical
Bore 2-7/8 inch
D 5.1181 inch
C 0.984 inch
B3 3.611 inch
s2 1.471 inch
d2 4 inch
r 0.059 inch
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 2.94 kg
