SKU: 1055-2.3/16G-RHP
RHP 1055-2-3/16G Spherical Outer Full Width Bearing Insert 2-3/16 inch Bore 100mm Outside Diameter
RHP 1055-2-3/16G Spherical Outer Full Width Bearing Insert 2-3/16 inch Bore 100mm Outside Diameter
Regular price
CHF 77.00
ex VAT
Regular price
Sale price
CHF 77.00
ex VAT
In stock
Price Break
10+
CHF 61.18
20+
CHF 57.74
30+
CHF 57.05
40+
CHF 56.37
50+
CHF 55.68
75+
CHF 54.99
100+
CHF 51.56
200+
CHF 50.87
250+
CHF 50.18
500+
CHF 49.49
1000+
CHF 48.12
Quantity
Couldn't load pickup availability
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Outside Diameter:
- 100mm
- Style:
- 1055

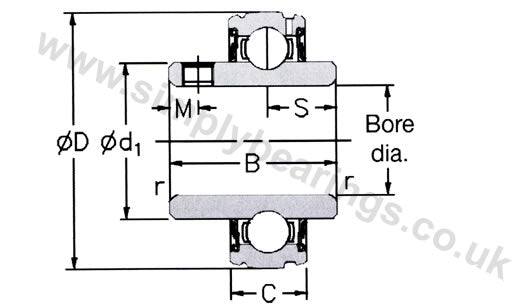

Technical
Technical
| Bore | 2-3/16 inch |
|---|---|
| D | 3.937 inch |
| C | 0.827 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| M | 0.376 inch |
| r | 0.059 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 1.12 kg |
