SKU: 1035-35DECG-RHP

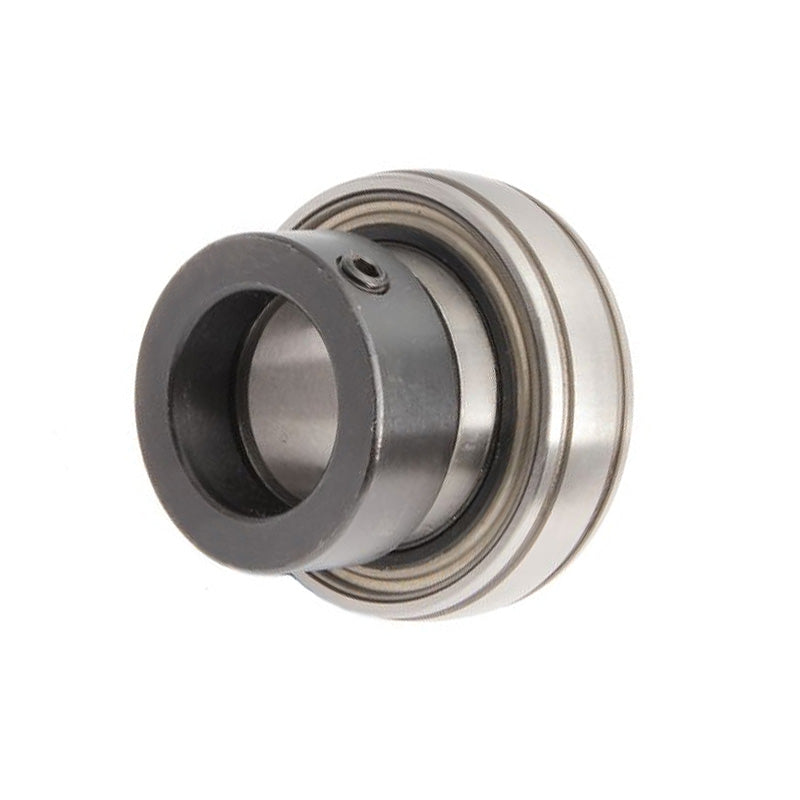

RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter

Name: RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
Brand: RHP
SKU: 1035-35DECG-RHP
Price: 48.00 CHF
Availability: InStock

CHF 48.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 38.20

20+ CHF 36.06

30+ CHF 35.63

40+ CHF 35.20

50+ CHF 34.77

75+ CHF 34.34

100+ CHF 32.19

200+ CHF 31.77

250+ CHF 31.34

500+ CHF 30.91

1000+ CHF 30.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 72mm
Style:: 1035

Technical

Bore	35mm
D	72mm
C	17mm
B3	51.18mm
s2	18.89mm
d2	55.58mm
r	1mm
Dynamic load Cr	25700 N
Static load Cor	15300 N
Rec max speed	4500 rpm
Weight	0.7 kg
