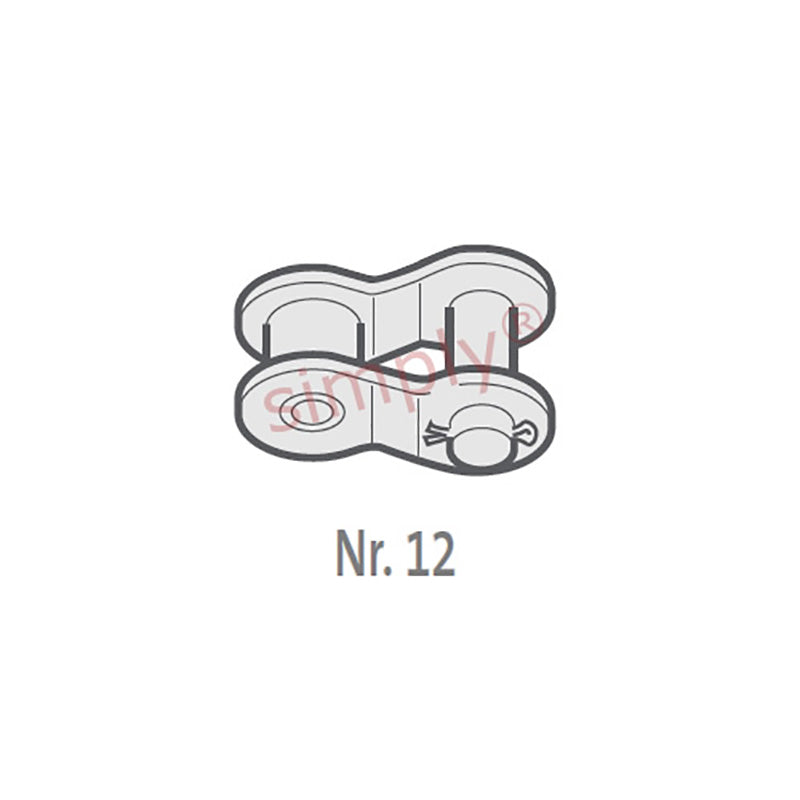

• Renold SD 100-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
1 1

SKU: 100-1-SD-NO12-RENOLD

Renold SD 100-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch

Renold SD 100-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
CHF 24.00 ex VAT
CHF 24.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 19.20
5+ CHF 18.12
10+ CHF 17.90
29+ CHF 17.69
49+ CHF 17.47
75+ CHF 17.25
100+ CHF 16.18
200+ CHF 15.96
250+ CHF 15.74
500+ CHF 15.53
1000+ CHF 15.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO12S_DESC
Brand / Quality:
Renold - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (A) 1.25 inch
Pitch (A) 31.75mm
Inside Width min (B) 18.9mm
Roller Diameter max (C) 19.05mm
Plate Height max (D) 30.1mm
Plate Width Inner max (E) 3.9mm
Plate Width Outer max (F) 3.9mm
Pin Diameter max (G) 9.53mm
Pin Length max (H1) 40mm
Connecting Link Extension max (J) 3.2mm
ISO606 Tensile Strength min 87000 N
Weight 0.04kg/m
