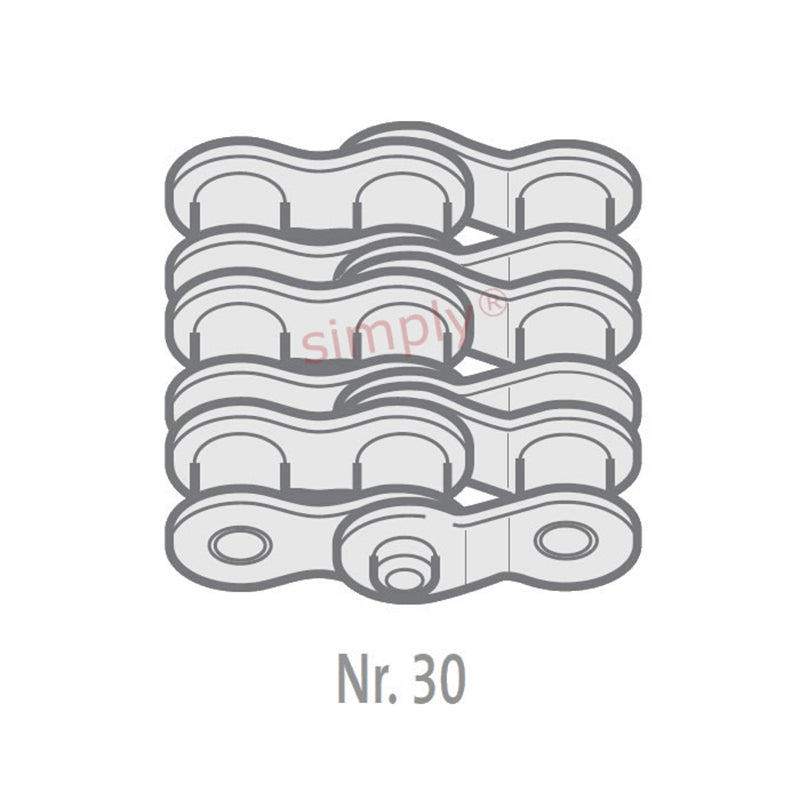

• Renold Blue Box 08B-3-NO30 BS Triplex Chain Double Cranked Link 1/2 inch Pitch
1 1

SKU: 08B-3-BB-NO30-RENOLD

Renold Blue Box 08B-3-NO30 BS Triplex Chain Double Cranked Link 1/2 inch Pitch

Renold Blue Box 08B-3-NO30 BS Triplex Chain Double Cranked Link 1/2 inch Pitch
CHF 27.00 ex VAT
CHF 27.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 20.91
5+ CHF 19.74
10+ CHF 19.50
29+ CHF 19.27
49+ CHF 19.03
75+ CHF 18.80
100+ CHF 17.62
200+ CHF 17.39
250+ CHF 17.15
500+ CHF 16.92
1000+ CHF 16.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BS_NO30T_DESC
Brand / Quality:
Renold - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch
Technical
Pitch (A) 0.5 inch
Pitch (A) 12.7mm
Inside Width min (B) 7.75mm
Roller Diameter max (C) 8.51mm
Plate Height max (D) 11.7mm
Plate Width Inner max (E) 1.55mm
Plate Width Outer max (F) 1.55mm
Pin Diameter max (G) 4.45mm
Pin Length max (H2) 44.3mm
Connecting Link Extension max (J) 2mm
Transverse Pitch nom (K) 13.92mm
ISO606 Tensile Strength min 44500 N
Weight 0.006kg/m
