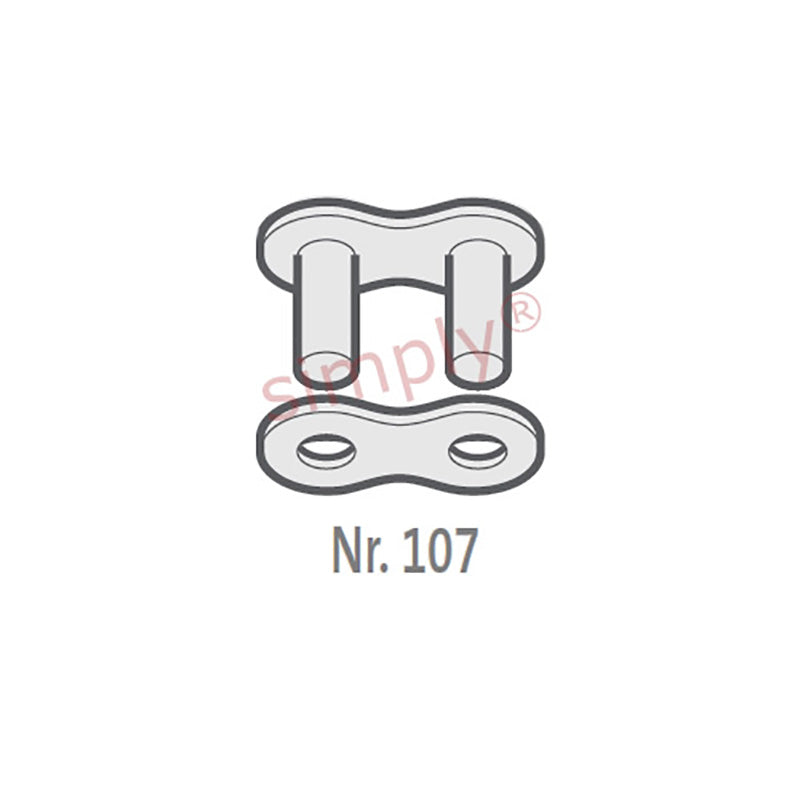

• Renold Blue Box 08B-1-NO107 BS Simplex Outer Link To Be Riveted 1/2 inch Pitch
1 1

SKU: 08B-1-BB-NO107-RENOLD

Renold Blue Box 08B-1-NO107 BS Simplex Outer Link To Be Riveted 1/2 inch Pitch

Renold Blue Box 08B-1-NO107 BS Simplex Outer Link To Be Riveted 1/2 inch Pitch
CHF 6.00 ex VAT
CHF 6.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 4.68
5+ CHF 4.42
10+ CHF 4.36
29+ CHF 4.31
49+ CHF 4.26
75+ CHF 4.21
100+ CHF 3.94
200+ CHF 3.89
250+ CHF 3.84
500+ CHF 3.78
1000+ CHF 3.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BS_NO107S_DESC
Brand / Quality:
Renold - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch
Technical
Pitch (A) 0.5 inch
Pitch (A) 12.7mm
Inside Width min (B) 7.75mm
Roller Diameter max (C) 8.51mm
Plate Height max (D) 11.7mm
Plate Width Inner max (E) 1.55mm
Plate Width Outer max (F) 1.55mm
Pin Diameter max (G) 4.45mm
Pin Length max (H1) 16.5mm
Connecting Link Extension max (J) 2mm
ISO606 Tensile Strength min 17800 N
Weight 0.003kg/m
