SKU: 07100D/07204-TIM

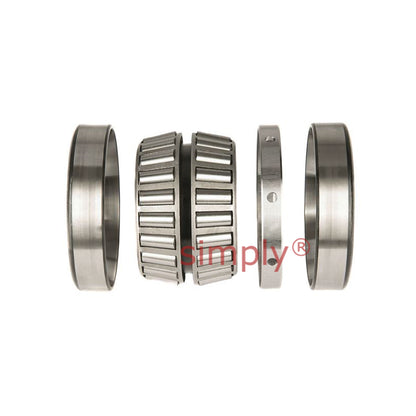

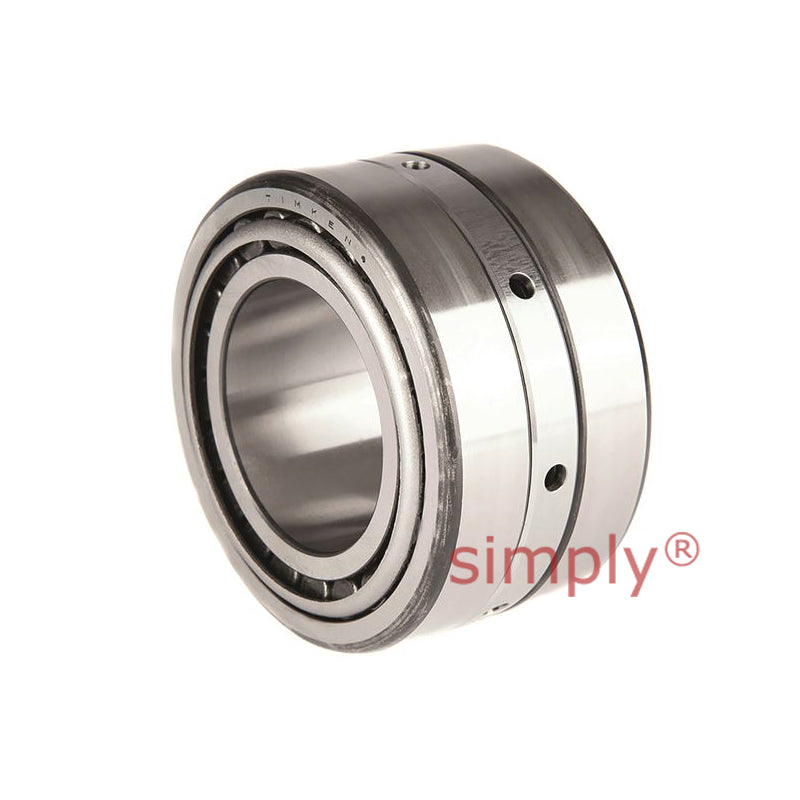

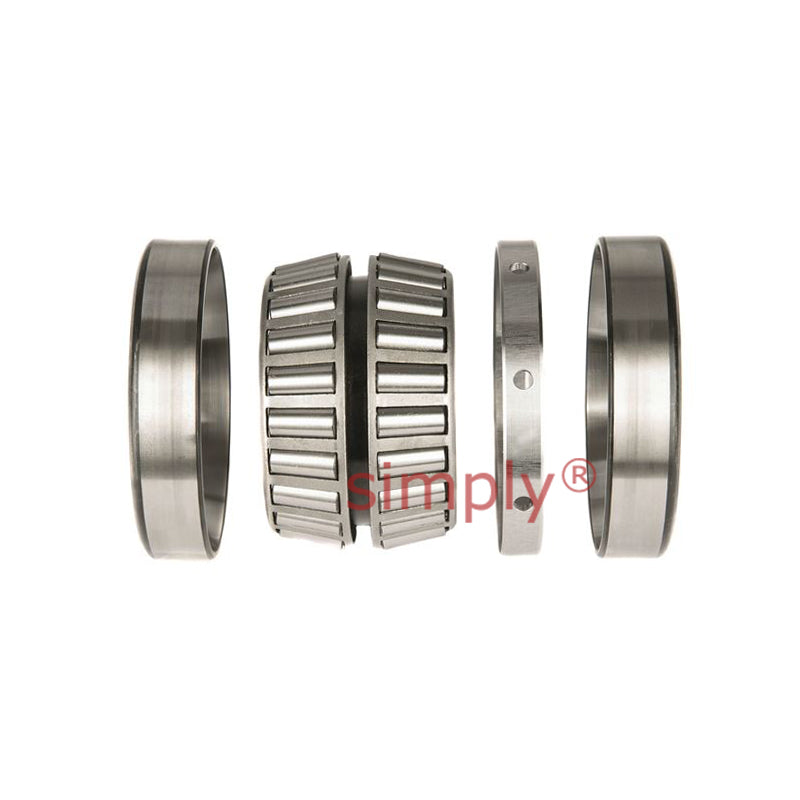

Timken 07100D/07204 TDI Double Inner Race Taper Roller Bearing 1x2.047x1.1842x1.4375 inch
Timken 07100D/07204 TDI Double Inner Race Taper Roller Bearing 1x2.047x1.1842x1.4375 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 51.99mm = 2.047 (2-3/64) inch
- Width:
- 30.08mm = 1.184 inch
Technical
Technical
| d | 25.4mm = 1 inch |
|---|---|
| D | 51.994mm = 2.047 inch |
| T | 30.079mm = 1.1842 inch |
| C | 36.512mm = 1.4375 inch |
| Dynamic (1) C1 | 46900N |
| Factors (5) e | 0.4 |
| Factors (5) Y1 | 1.68 |
| Factors (5) Y2 | 2.5 |
| Dynamic (2) C90 | 6990N |
| Dynamic (2) Ca90 | 4810N |
| Dynamic (2) C90(2) | 12200N |
| Factors (5) K | 1.45 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 30mm = 1.18 inch |
| Housing max shaft fillet radius r (3) | 1.3mm = 0.05 inch |
| Housing backing shoulder diameter Db | 45mm = 1.77 inch |
| G1 | 7.6 |
| G2 | 6.99 |
| Cg | 0.0509 |
