SKU: 06B-1-NO30-MB
Major Brand 06B-1-NO30 BS Simplex Chain Double Cranked Link 3/8 inch Pitch
Major Brand 06B-1-NO30 BS Simplex Chain Double Cranked Link 3/8 inch Pitch
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: 06B-1-DOL
In stock
Price Break
2+
CHF 4.10
5+
CHF 3.87
10+
CHF 3.82
29+
CHF 3.78
49+
CHF 3.73
75+
CHF 3.69
100+
CHF 3.46
200+
CHF 3.41
250+
CHF 3.36
500+
CHF 3.32
1000+
CHF 3.23
Quantity
Couldn't load pickup availability
Description
Description

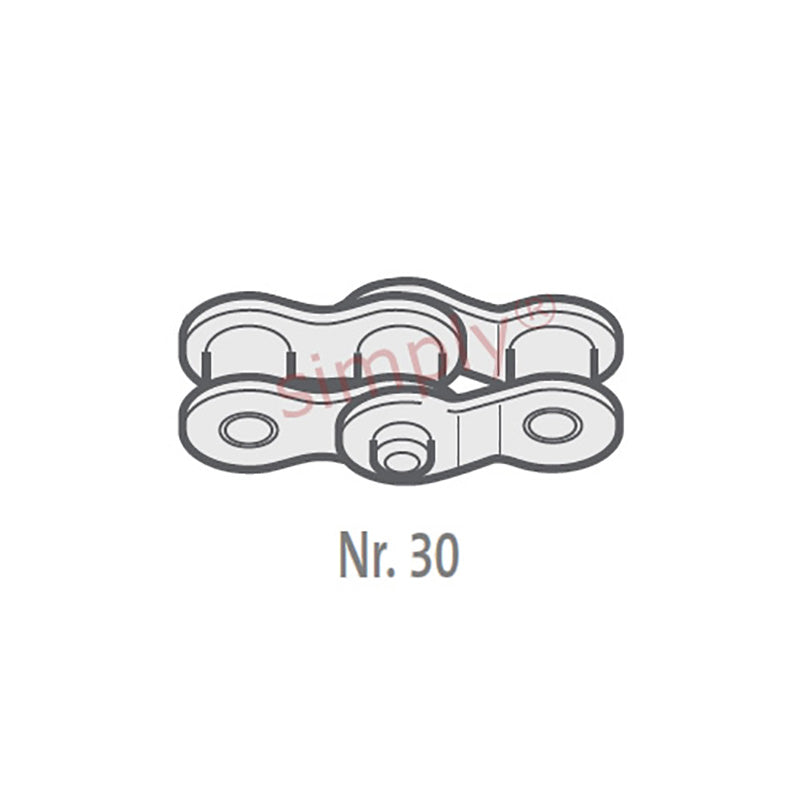

Branded DOL / No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 13.2mm |
| Connecting Link Extension max (J) | 1mm |
| ISO606 Tensile Strength min | 8900 N |
| Weight | 0.002kg/m |
