SKU: ZKLN.2052.ZZ

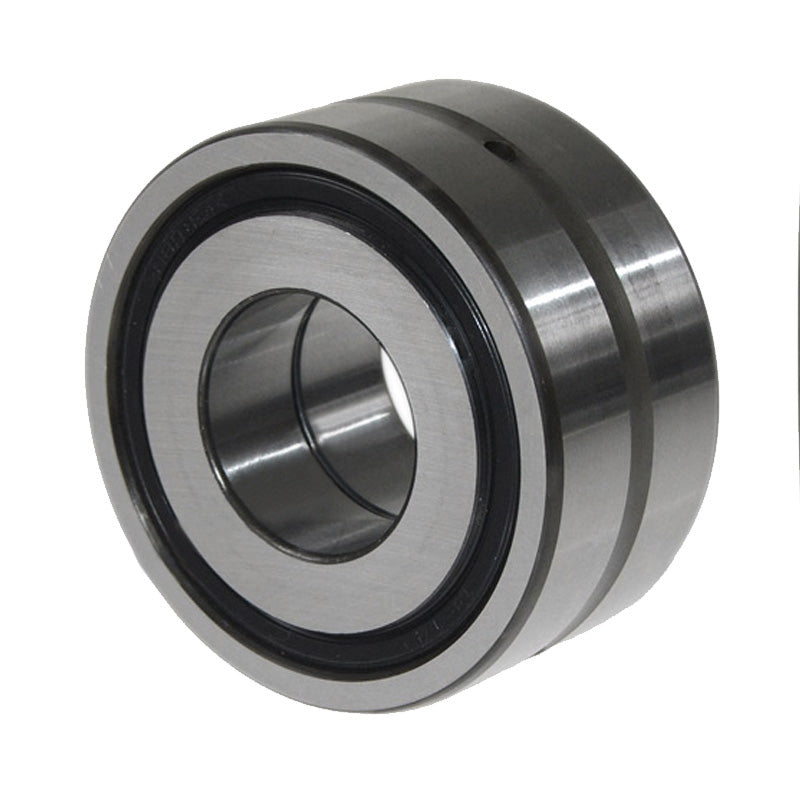

INA ZKLN2052ZZ Shielded Double Row Axial Angular Contact Ball Bearing 20x52x28mm
- Regular price
- CHF 391.00 ex VAT
- Sale price
- CHF 391.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 347.99
19+
CHF 328.44
29+
CHF 324.53
39+
CHF 320.62
49+
CHF 316.71
74+
CHF 312.80
99+
CHF 293.25
199+
CHF 289.34
249+
CHF 285.43
499+
CHF 281.52
999+
CHF 273.70
SKU:
ZKLN.2052.ZZ
INA ZKLN2052ZZ Shielded Double Row Axial Angular Contact Ball Bearing 20x52x28mm
- Regular price
- CHF 391.00 ex VAT
- Sale price
- CHF 391.00
- Regular price
-
Description
|
INA ZKLN Series Angular Contact Bearings: Bearings of series ZKLN are double row axial angular contact ball bearings with an outer ring suitable for mounting in a housing and has integral seals. These bearings are predominantly used for the bearing arrangements of screw drives and are an extremely economical solution for criteria such as a simple adjacent construction and low fitting costs. The larger sizes of these bearings – with a bore diameter of 60 mm to 100 mm are particularly suitable for bearing arrangements of large threaded spindles or rotating threaded nuts, in other words screw drives with a static spindle. Double row axial angular contact ball bearings of series ZKLN...ZZ have two rows of balls with a contact angle of 60deg. The bearings are sealed on both sides with gap seals and are greased for life for the majority of applications. Additional seals in the adjacent construction are not generally required. In most applications, the initial greasing is sufficient for the whole operating life. If necessary, re lubrication can be carried out via a threaded connector from a central lubrication system on the flange side or by means of a lubrication groove and lubrication hole via the adjacent construction. The axial run out tolerance corresponds approximately to P2 in accordance with DIN 620. Benefits: Cost effective solution, re-lubricatable, housed fitting, low down time |
