SKU: ZKLN.1747.2RS

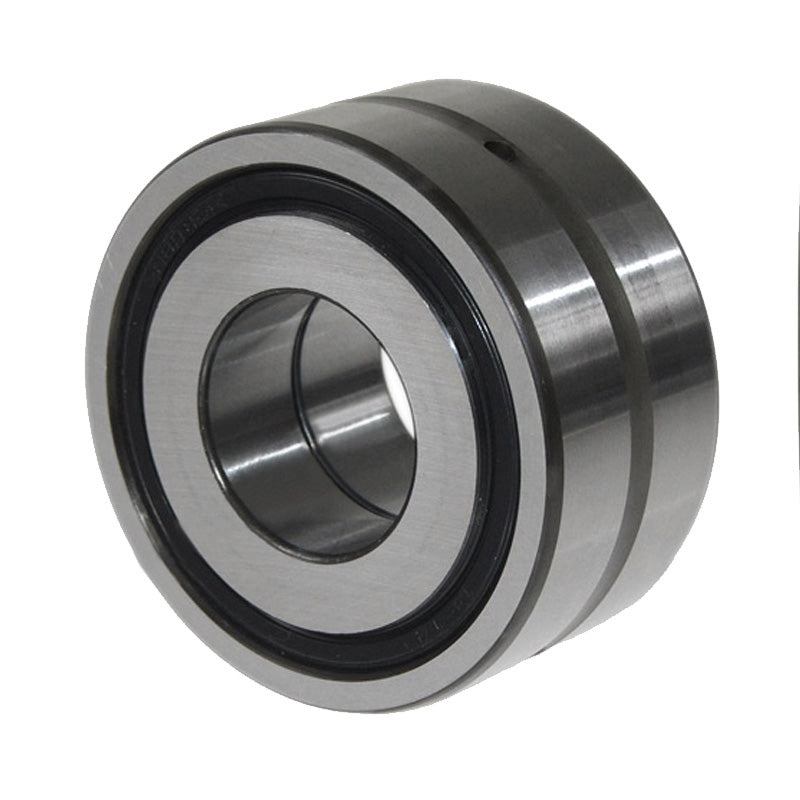

INA ZKLN17472RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 17x47x25mm Allow 2-3 Days
- Regular price
- CHF 337.00 ex VAT
- Sale price
- CHF 337.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 299.93
19+
CHF 283.08
29+
CHF 279.71
39+
CHF 276.34
49+
CHF 272.97
74+
CHF 269.60
99+
CHF 252.75
199+
CHF 249.38
249+
CHF 246.01
499+
CHF 242.64
999+
CHF 235.90
SKU:
ZKLN.1747.2RS
INA ZKLN17472RS Rubber Sealed Double Row Axial Angular Contact Ball Bearing 17x47x25mm Allow 2-3 Days
- Regular price
- CHF 337.00 ex VAT
- Sale price
- CHF 337.00
- Regular price
-
Description
|
INA ZKLN Series Angular Contact Bearings: Bearings of series ZKLN are double row axial angular contact ball bearings with an outer ring suitable for mounting in a housing and has integral seals. These bearings are predominantly used for the bearing arrangements of screw drives and are an extremely economical solution for criteria such as a simple adjacent construction and low fitting costs. The larger sizes of these bearings – with a bore diameter of 60 mm to 100 mm are particularly suitable for bearing arrangements of large threaded spindles or rotating threaded nuts, in other words screw drives with a static spindle. Double row axial angular contact ball bearings of series ZKLN...2RS have two rows of balls with a contact angle of 60 Degrees. The bearings are sealed on both sides with rubber seals and are greased for life for the majority of applications. Additional seals in the adjacent construction are not required. In most applications, the initial greasing is sufficient for the whole operating life. If necessary, re lubrication can be carried out via a threaded connector from a central lubrication system on the flange side or by means of a lubrication groove and lubrication hole via the adjacent construction. The axial run out tolerance corresponds approximately to P2 in accordance with DIN 620. Benefits: Cost effective solution, re-lubricatable, housed fitting, low down time |
