SKU: ZKLF.2575.2Z

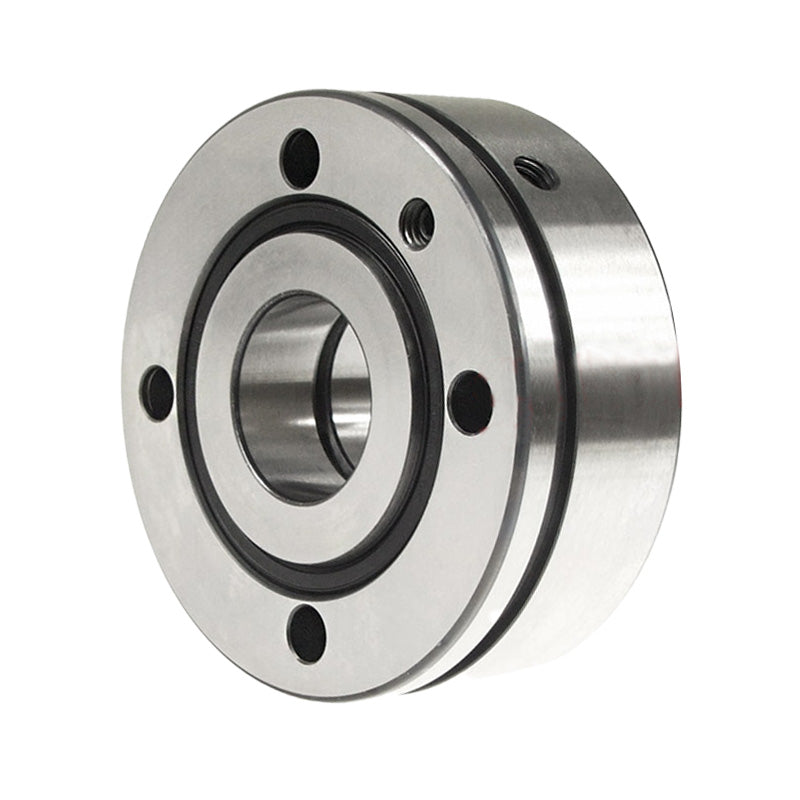

INA ZKLF25752Z Shielded Double Row Axial Angular Contact Ball Bearing 25x75x28mm Allow 2-3 Days
- Regular price
- CHF 741.00 ex VAT
- Sale price
- CHF 741.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 659.49
19+
CHF 622.44
29+
CHF 615.03
39+
CHF 607.62
49+
CHF 600.21
74+
CHF 592.80
99+
CHF 555.75
199+
CHF 548.34
249+
CHF 540.93
499+
CHF 533.52
999+
CHF 518.70
SKU:
ZKLF.2575.2Z
INA ZKLF25752Z Shielded Double Row Axial Angular Contact Ball Bearing 25x75x28mm Allow 2-3 Days
- Regular price
- CHF 741.00 ex VAT
- Sale price
- CHF 741.00
- Regular price
-
Description
|
INA ZKLF Series Angular Contact Bearings: Bearings of series ZKLF are double row axial angular contact ball bearings with an outer ring suitable for flange mounting and integral seals. These bearings are predominantly used for the bearing arrangements of screw drives and are an extremely economical solution for criteria such as a simple adjacent construction and low fitting costs. The larger sizes of these bearings – with a bore diameter of 60 mm to 100 mm are particularly suitable for bearing arrangements of large threaded spindles or rotating threaded nuts, in other words screw drives with a static spindle. Double row axial angular contact ball bearings of series ZKLF...2Z have two rows of balls with a contact angle of 60 Degrees. The bearings are sealed on both sides with gap seals and are greased for life for the majority of applications. Additional seals in the adjacent construction are not required. In most applications, the initial greasing is sufficient for the whole operating life. If necessary, re lubrication can be carried out via a threaded connector from a central lubrication system on the flange side or by means of a lubrication groove and lubrication hole via the adjacent construction. The axial run out tolerance corresponds approximately to P2 in accordance with DIN 620. Benefits: Cost effective solution, re-lubricatable, bolt in place, low down time |
