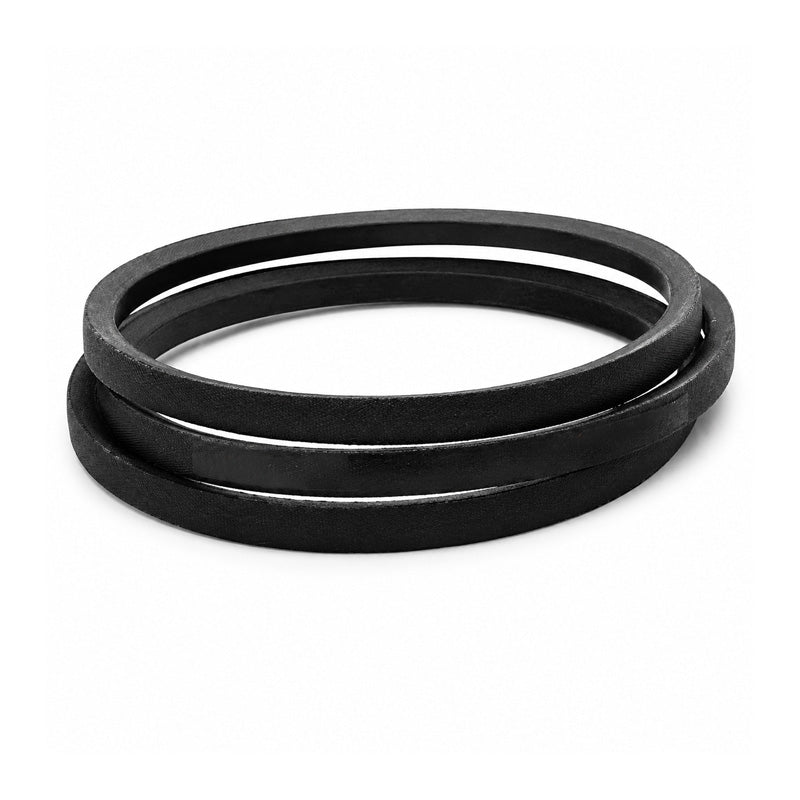

Z50.75 Continental PowerSpan Classical Z-Section V-Belt

SKU: Z50.75-PSPAN

Z50.75 Continental PowerSpan Classical Z-Section V-Belt

CHF 6.00 ex VAT
CHF 6.00
ex VAT
Not in stock

Quantity Price Breaks

10 CHF 5.34
19 CHF 5.04
29 CHF 4.98
39 CHF 4.92
49 CHF 4.86
74 CHF 4.80
99 CHF 4.50
199 CHF 4.44
249 CHF 4.38
499 CHF 4.32
999 CHF 4.20
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Z50.75 Continental PowerSpan Classical Z-Section V-Belt
SKU: Z50.75-PSPAN

Z50.75 Continental PowerSpan Classical Z-Section V-Belt

CHF 6.00 ex VAT
CHF 6.00
ex VAT

Description

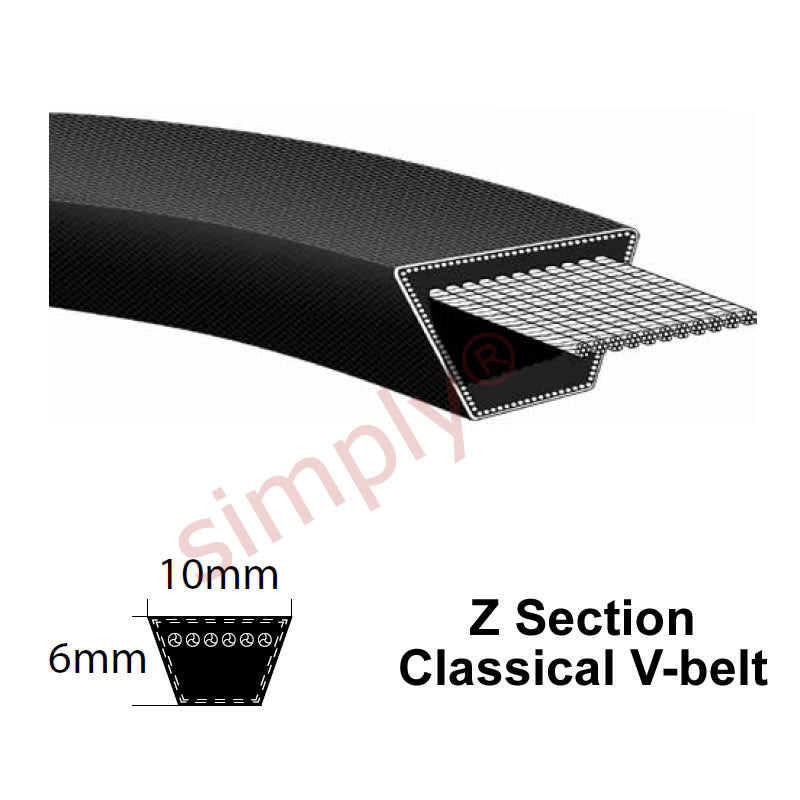

Z Section Classic Type V Belts: Major Brand longer life classic 10x6mm (3/8x1/4 inch) belts, primarily used in industrial drives. Recommended for use in special applications particularly where reverse idlers need to be used due to their smaller thickness.
Benefits: Universal classical profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Technical

Inside Length = 50.75 inch = 1289mm
Outside Length = 52.25 inch = 1327mm
Datum Length = 51.5 inch = 1308mm

Downloads

Download: GenericFileDrop
