SKU: W6205-2Z-SKF
SKF W62052Z Stainless Steel Metal Shielded Deep Groove Ball Bearing 25x52x15mm
- Regular price
- CHF 58.00 ex VAT
- Sale price
- CHF 58.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 51.62
19+
CHF 48.72
29+
CHF 48.14
39+
CHF 47.56
49+
CHF 46.98
74+
CHF 46.40
99+
CHF 43.50
199+
CHF 42.92
249+
CHF 42.34
499+
CHF 41.76
999+
CHF 40.60
SKU:
W6205-2Z-SKF
SKF W62052Z Stainless Steel Metal Shielded Deep Groove Ball Bearing 25x52x15mm
- Regular price
- CHF 58.00 ex VAT
- Sale price
- CHF 58.00
- Regular price
-
Description
| SKF stainless steel deep groove ball bearings are specially designed to resist corrosion. They are ideally suited for application in the food industry and anywhere that requires a bearing which is both hygienic and has a high resilience to water. These single row deep groove ball bearings have the same deep raceway grooves and close conformity between raceways and balls as standard deep groove ball bearings. They can carry axial loads acting in both directions in addition to radial loads, even at high speeds. SKF stainless steel deep groove ball bearings have the same running properties as conventional steel deep groove ball bearings, but have a lower load carrying capacity.
The bearings are available in open and sealed designs for shaft diameters from 1 to 50 mm. Benefits: Food safe, water and corrosion resilient, available up to 50mm bore Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |

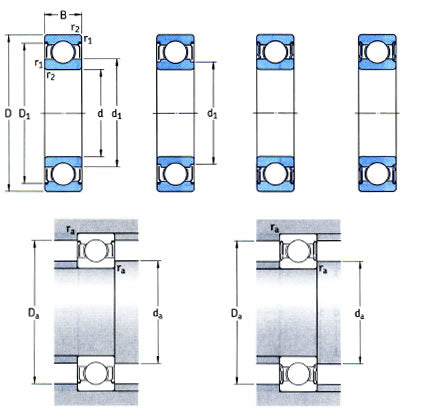

Technical
| d | = | 25mm |
| D | = | 52mm |
| B | = | 15mm |
| Dynamic load C | = | 11.9 kN |
| Static load Co | = | 7.65 kN |
| Fatigue load limit Pu | = | 0.335 kN |
| Reference speed | = | 28000 rpm |
| Limiting speed | = | 14000 rpm |
| Weight | = | 0.13 kg |
| d1 | = | 34mm |
| D1 | = | 45.7mm |
| r1r2 min | = | 1mm |
| da min | = | 30.6mm |
| Da max | = | 46.4mm |
| ra max | = | 1mm |
| Calculation factor kr | = | 0.025 |
| Calculation factor f0 | = | 14 |
