SKU: UP006

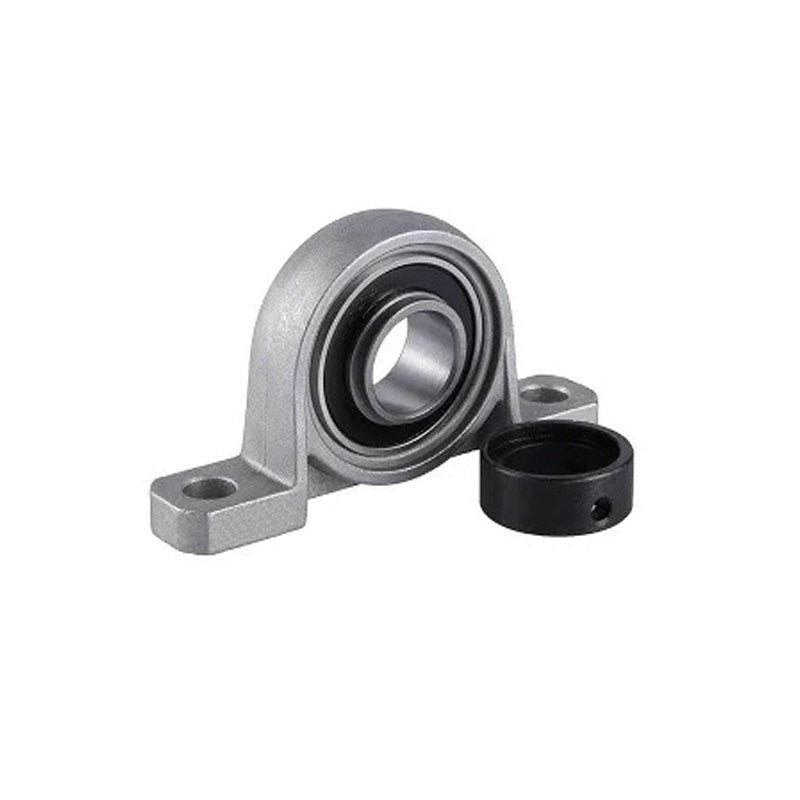

UP006 2 Bolt Aluminium Pillow Block with 30mm Bore Eccentric Collar Insert
- Regular price
- CHF 19.00 ex VAT
- Sale price
- CHF 19.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 16.91
19+
CHF 15.96
29+
CHF 15.77
39+
CHF 15.58
49+
CHF 15.39
74+
CHF 15.20
99+
CHF 14.25
199+
CHF 14.06
249+
CHF 13.87
499+
CHF 13.68
999+
CHF 13.30
SKU:
UP006
UP006 2 Bolt Aluminium Pillow Block with 30mm Bore Eccentric Collar Insert
- Regular price
- CHF 19.00 ex VAT
- Sale price
- CHF 19.00
- Regular price
-
Description
|
UP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar and grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
Technical
| Shaft Diameter | = | 30mm |
| H | = | 36mm |
| L | = | 132mm |
| J | = | 106mm |
| A | = | 26mm |
| N | = | 13mm |
| H1 | = | 11mm |
| H2 | = | 70mm |
| B | = | 24.5mm |
| s | = | 6.5mm |
| Recommended Mounting Bolt | = | M10 |
| Weight | = | 0.5 kg |
| Dynamic load | = | 13230 N ~ 1349.085 kgf |
| Static load | = | 8281 N ~ 844.427 kgf |
