SKU: UP005

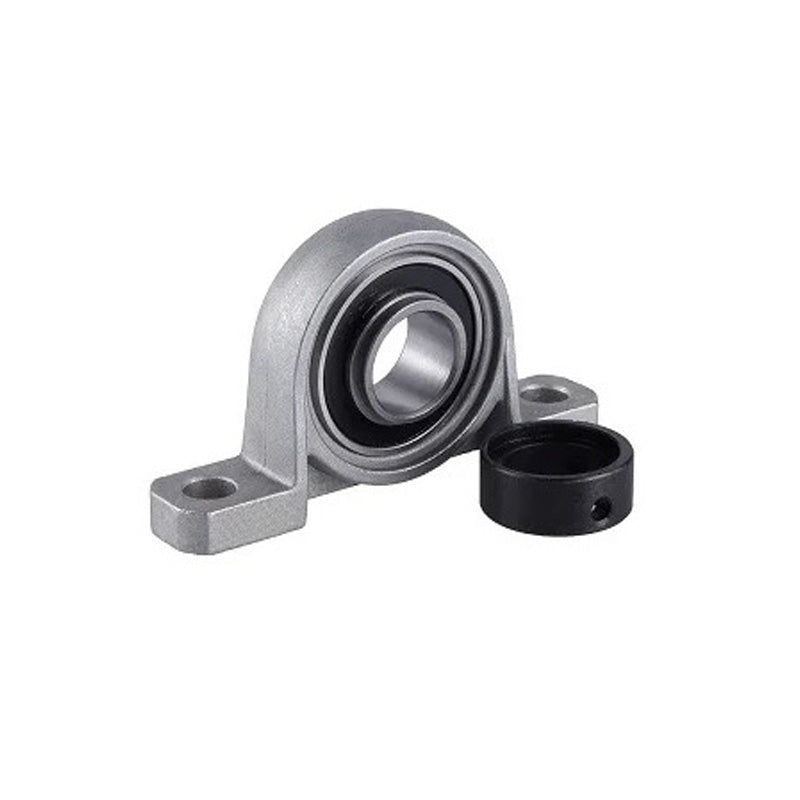

UP005 2 Bolt Aluminium Pillow Block with 25mm Bore Eccentric Collar Insert
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 16.02
19+
CHF 15.12
29+
CHF 14.94
39+
CHF 14.76
49+
CHF 14.58
74+
CHF 14.40
99+
CHF 13.50
199+
CHF 13.32
249+
CHF 13.14
499+
CHF 12.96
999+
CHF 12.60
SKU:
UP005
UP005 2 Bolt Aluminium Pillow Block with 25mm Bore Eccentric Collar Insert
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
Description
|
UP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar and grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
Technical
| Shaft Diameter | = | 25mm |
| H | = | 32mm |
| L | = | 112mm |
| J | = | 90mm |
| A | = | 20mm |
| N | = | 10mm |
| H1 | = | 10mm |
| H2 | = | 62mm |
| B | = | 22.5mm |
| s | = | 6mm |
| Recommended Mounting Bolt | = | M8 |
| Weight | = | 0.33 kg |
| Dynamic load | = | 10094 N ~ 1029.302 kgf |
| Static load | = | 5831 N ~ 594.597 kgf |
