SKU: UJSP16X6-MB

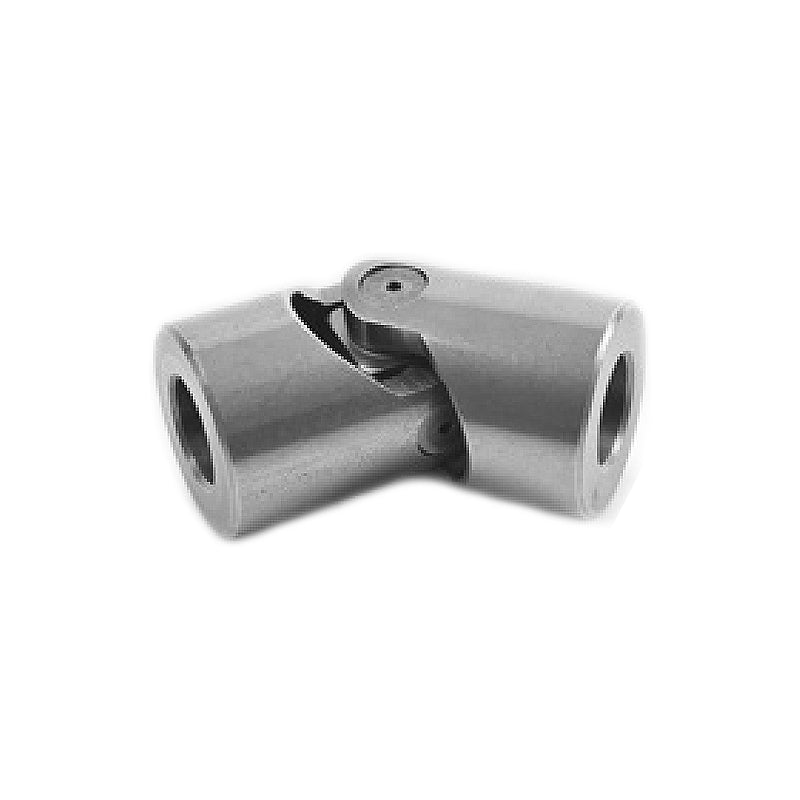

Major Brand UJSP16X6 Steel Universal Single Joint with Plain Bearing 6x16x34mm
- Regular price
- CHF 46.00 ex VAT
- Sale price
- CHF 46.00
- Regular price
-
Quantity Price Breaks
Major Brand UJSP16X6 Steel Universal Single Joint with Plain Bearing 6x16x34mm
- Regular price
- CHF 46.00 ex VAT
- Sale price
- CHF 46.00
- Regular price
-
Description
UJSP Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts

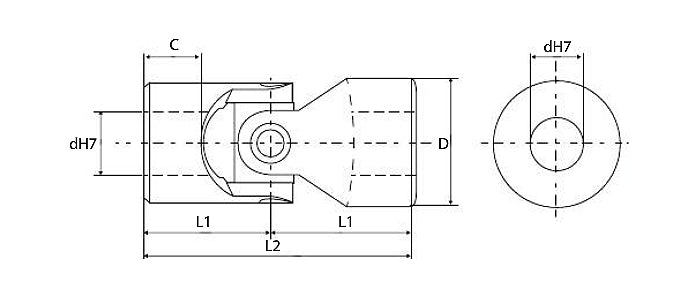

Technical
| Bore d H7 | = | 6mm |
| Diameter D | = | 16mm |
| Overall length L2 | = | 34mm |
| Pivot centre L1 | = | 17mm |
| Hub length C | = | 8mm |
| Maximum working angle | = | 45 degrees |
| Maximum speed | = | 1000 rpm |
| Maximum power | = | 6kW |
| Maximum torque | = | 600 Nm |
| Gaiter type | = | UJG01M16 |
| Weight KG | = | 0.05 kg |
