SKU: UFL006

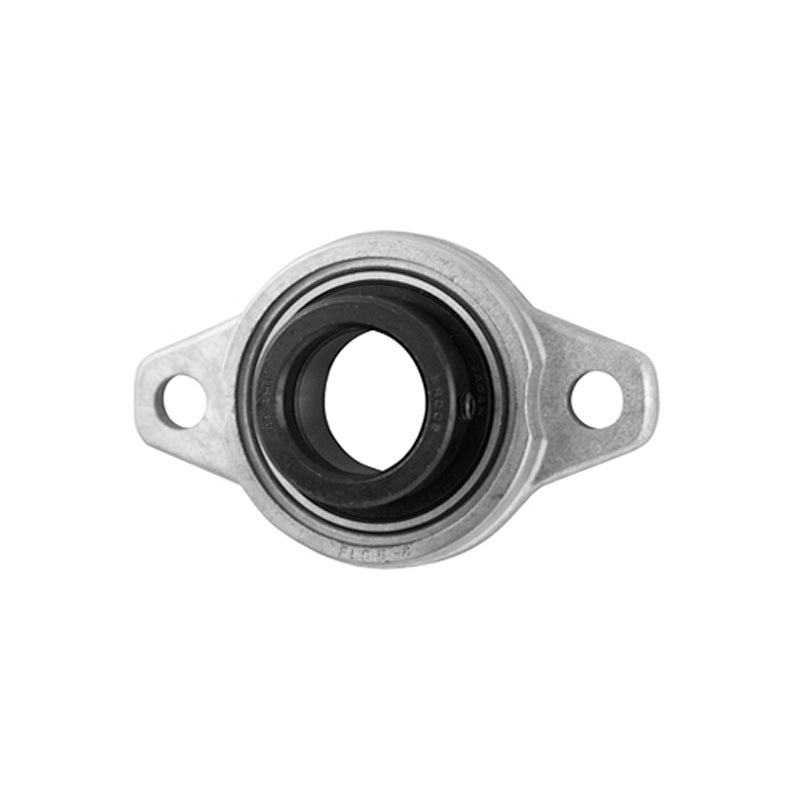

UFL006 Aluminium 2 Bolt Oval Bearing with Lock Collar 30mm Bore
- Regular price
- CHF 19.00 ex VAT
- Sale price
- CHF 19.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 16.91
19+
CHF 15.96
29+
CHF 15.77
39+
CHF 15.58
49+
CHF 15.39
74+
CHF 15.20
99+
CHF 14.25
199+
CHF 14.06
249+
CHF 13.87
499+
CHF 13.68
999+
CHF 13.30
SKU:
UFL006
UFL006 Aluminium 2 Bolt Oval Bearing with Lock Collar 30mm Bore
- Regular price
- CHF 19.00 ex VAT
- Sale price
- CHF 19.00
- Regular price
-
Description
|
UFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar |

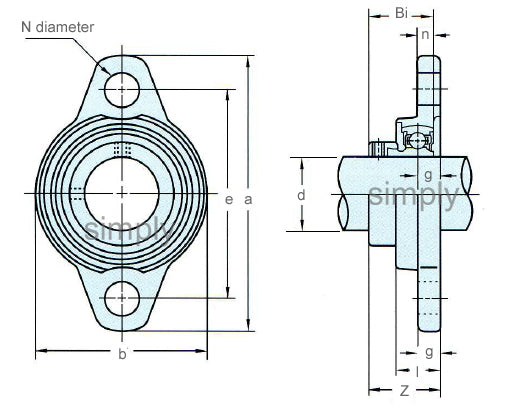

Technical
| d | = | 30mm |
| a | = | 112mm |
| e | = | 85mm |
| g | = | 9mm |
| l | = | 18mm |
| N | = | 13mm |
| b | = | 70mm |
| n | = | 6.5mm |
| Bi | = | 26.5mm |
| d1 | = | 42mm |
| t | = | 31mm |
| z | = | 29mm |
| Recommended fixing screw | = | M10 |
| Weight | = | 0.39 kg |
| Dynamic load | = | 13230 N ~ 1349.085 kgf |
| Static load | = | 8281 N ~ 844.427 kgf |
