SKU: UFL001

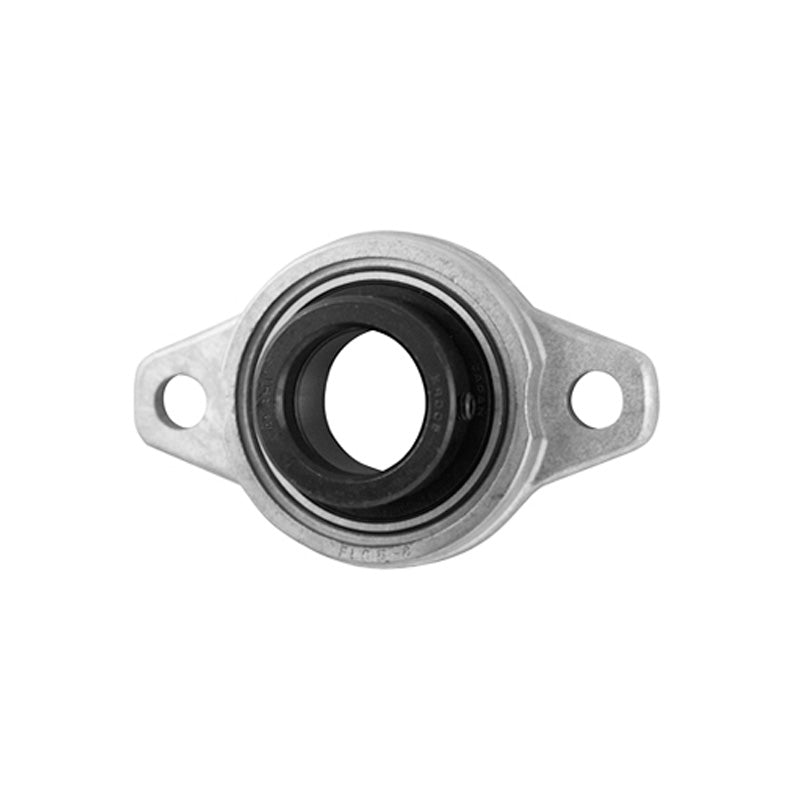

UFL001 Aluminium 2 Bolt Oval Bearing with Lock Collar 12mm Bore
- Regular price
- CHF 12.00 ex VAT
- Sale price
- CHF 12.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 10.68
19+
CHF 10.08
29+
CHF 9.96
39+
CHF 9.84
49+
CHF 9.72
74+
CHF 9.60
99+
CHF 9.00
199+
CHF 8.88
249+
CHF 8.76
499+
CHF 8.64
999+
CHF 8.40
SKU:
UFL001
UFL001 Aluminium 2 Bolt Oval Bearing with Lock Collar 12mm Bore
- Regular price
- CHF 12.00 ex VAT
- Sale price
- CHF 12.00
- Regular price
-
Description
|
UFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar |
Technical
| d | = | 12mm |
| a | = | 63mm |
| e | = | 48mm |
| g | = | 6mm |
| l | = | 12mm |
| N | = | 7mm |
| b | = | 38mm |
| n | = | 4mm |
| Bi | = | 17.5mm |
| d1 | = | 19mm |
| t | = | 20.5mm |
| z | = | 19.5mm |
| Recommended fixing screw | = | M6 |
| Weight | = | 0.08 kg |
| Dynamic load | = | 5096 N ~ 519.647 kgf |
| Static load | = | 2401 N ~ 244.834 kgf |
