SKU: UCX.12

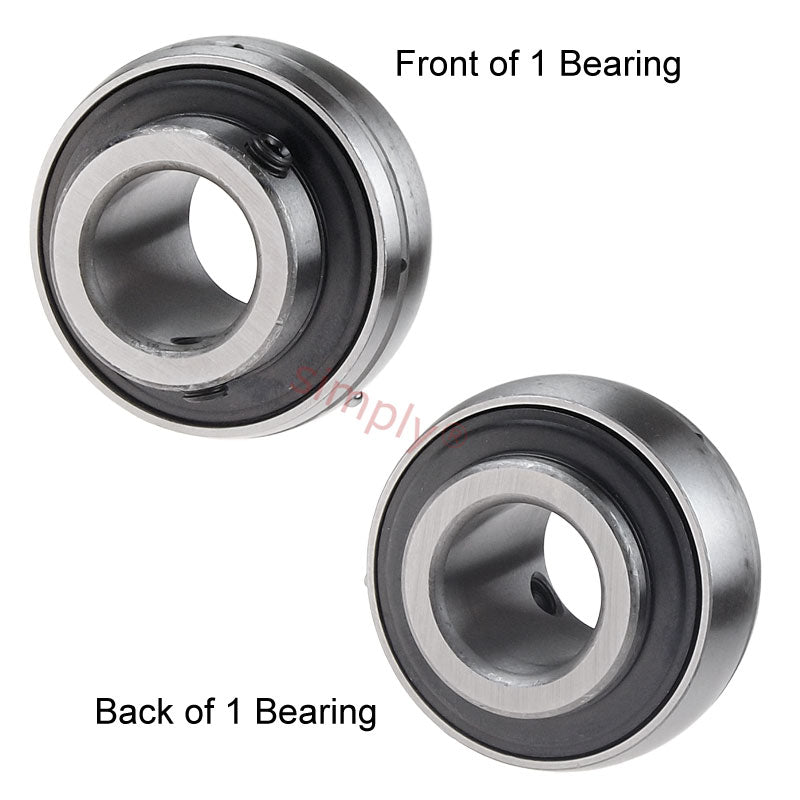

UCX12 Metric Bearing Insert with 60mm Bore 120mm Outside Dia
- Regular price
- CHF 40.00 ex VAT
- Sale price
- CHF 40.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 35.60
19+
CHF 33.60
29+
CHF 33.20
39+
CHF 32.80
49+
CHF 32.40
74+
CHF 32.00
99+
CHF 30.00
199+
CHF 29.60
249+
CHF 29.20
499+
CHF 28.80
999+
CHF 28.00
SKU:
UCX.12
UCX12 Metric Bearing Insert with 60mm Bore 120mm Outside Dia
- Regular price
- CHF 40.00 ex VAT
- Sale price
- CHF 40.00
- Regular price
-
Description
|
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Technical
| d | = | 60mm |
| D | = | 120mm |
| Bi | = | 65.1mm |
| Be | = | 28mm |
| n | = | 25.4mm |
| m | = | 39.7mm |
| G | = | 10mm |
| Grub screw | = | M10x1 |
| Weight | = | 2.05 kg |
| Dynamic load | = | 4480 kgf |
| Static load | = | 3470 kgf |
| Rec max speed | = | 2600 rpm |
