UCX11-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia

SKU: UCX.11-36

UCX11-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia

CHF 41.00 ex VAT
CHF 41.00
ex VAT
In stock

Quantity Price Breaks

10+ CHF 36.49
19+ CHF 34.44
29+ CHF 34.03
39+ CHF 33.62
49+ CHF 33.21
74+ CHF 32.80
99+ CHF 30.75
199+ CHF 30.34
249+ CHF 29.93
499+ CHF 29.52
999+ CHF 28.70
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UCX11-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
SKU: UCX.11-36

UCX11-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia

CHF 41.00 ex VAT
CHF 41.00
ex VAT

Description

UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

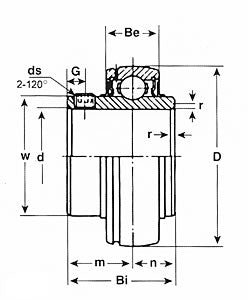

Technical

d = 2-1/4 inch
D = 110mm
Bi = 65.1mm
Be = 27mm
n = 25.4mm
m = 39.7mm
G = 10mm
Grub screw = 2.5630"
= Weight
1.8 kg = Dynamic load
4100 kgf = Static load
3150 kgf = N/A
