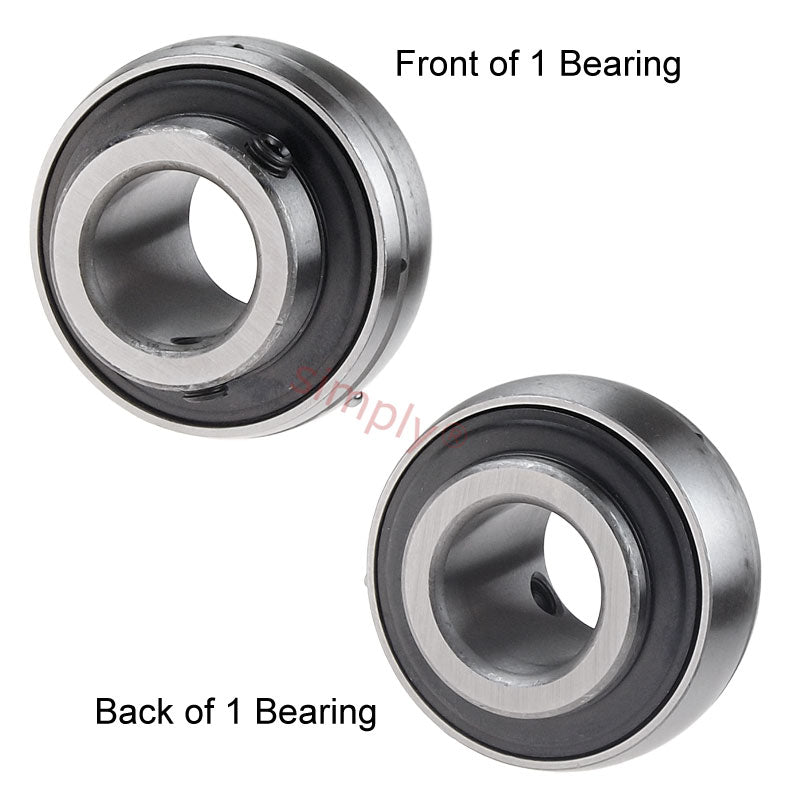

UCX06-19 Imperial Bearing Insert with 1-3/16 inch Bore 72mm Outside Dia

SKU: UCX.06-19

UCX06-19 Imperial Bearing Insert with 1-3/16 inch Bore 72mm Outside Dia

CHF 18.00 ex VAT
CHF 18.00
ex VAT
Equivalent to: 1035-1-3/16G
In stock

Quantity Price Breaks

3 CHF 16.02
4 CHF 15.12
9 CHF 14.94
19 CHF 14.76
49 CHF 14.58
99 CHF 14.40
499 CHF 13.50
999 CHF 13.32
1999 CHF 13.14
2999 CHF 12.96
4999 CHF 12.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UCX06-19 Imperial Bearing Insert with 1-3/16 inch Bore 72mm Outside Dia
SKU: UCX.06-19

UCX06-19 Imperial Bearing Insert with 1-3/16 inch Bore 72mm Outside Dia

CHF 18.00 ex VAT
CHF 18.00
ex VAT

Description

UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

d = 1-3/16 inch
D = 72mm
Bi = 42.9mm
Be = 20mm
n = 17.5mm
m = 25.4mm
G = 6.5mm
Grub screw = 5/16-24-unf
Weight = 0.58 kg
Dynamic load = 2010 kgf
Static load = 1390 kgf
Rec max speed = 4500 rpm
