SKU: UCP.328

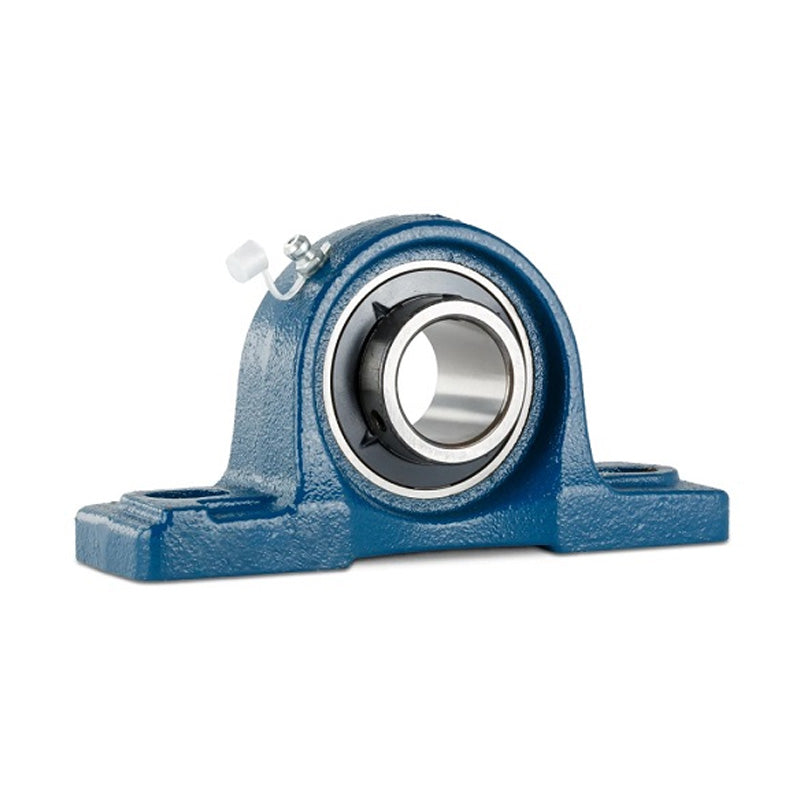

UCP328 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 140mm Bore Insert
- Regular price
- CHF 1,851.00 ex VAT
- Sale price
- CHF 1,851.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 1,647.39
19+
CHF 1,554.84
29+
CHF 1,536.33
39+
CHF 1,517.82
49+
CHF 1,499.31
74+
CHF 1,480.80
99+
CHF 1,388.25
199+
CHF 1,369.74
249+
CHF 1,351.23
499+
CHF 1,332.72
999+
CHF 1,295.70
SKU:
UCP.328
UCP328 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 140mm Bore Insert
- Regular price
- CHF 1,851.00 ex VAT
- Sale price
- CHF 1,851.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 140mm |
| h | = | 200mm |
| a | = | 620mm |
| e | = | 500mm |
| b | = | 140mm |
| s2 | = | 55mm |
| s1 | = | 40mm |
| g | = | 60mm |
| w | = | 393mm |
| b1 | = | 145mm |
| n | = | 59mm |
| Bolt | = | 33mm |
| Weight | = | 91.2 kg |
| Dynamic load | = | 25300 kgf |
| Static load | = | 24600 kgf |
