SKU: UCP.326

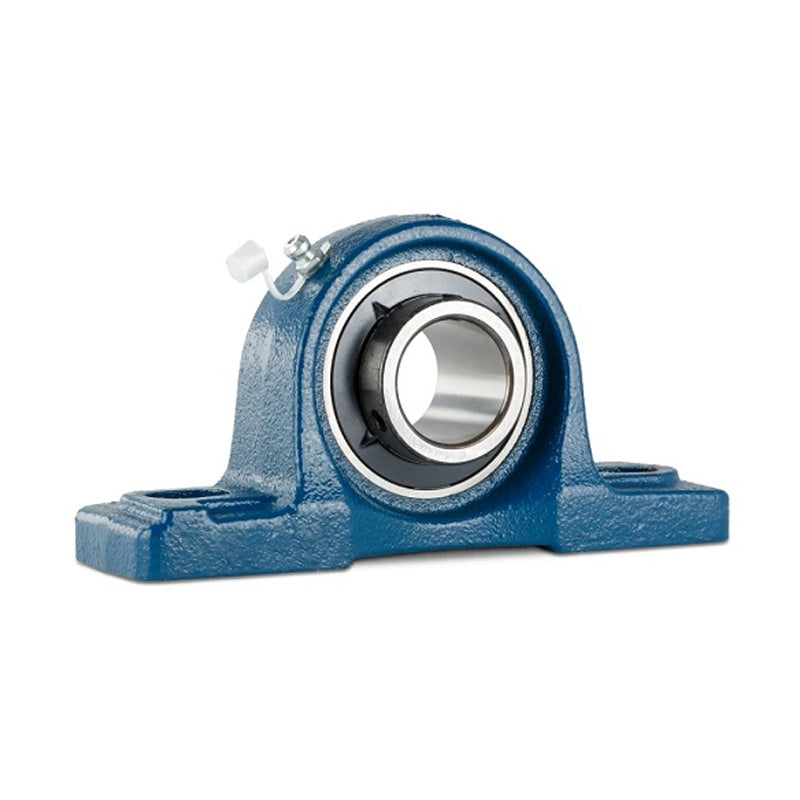

UCP326 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 130mm Bore Insert
- Regular price
- CHF 1,383.00 ex VAT
- Sale price
- CHF 1,383.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 1,230.87
19+
CHF 1,161.72
29+
CHF 1,147.89
39+
CHF 1,134.06
49+
CHF 1,120.23
74+
CHF 1,106.40
99+
CHF 1,037.25
199+
CHF 1,023.42
249+
CHF 1,009.59
499+
CHF 995.76
999+
CHF 968.10
SKU:
UCP.326
UCP326 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 130mm Bore Insert
- Regular price
- CHF 1,383.00 ex VAT
- Sale price
- CHF 1,383.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 130mm |
| h | = | 180mm |
| a | = | 600mm |
| e | = | 480mm |
| b | = | 140mm |
| s2 | = | 55mm |
| s1 | = | 40mm |
| g | = | 50mm |
| w | = | 355mm |
| b1 | = | 135mm |
| n | = | 54mm |
| Bolt | = | 33mm |
| Weight | = | 72.1 kg |
| Dynamic load | = | 22900 kgf |
| Static load | = | 21400 kgf |
