SKU: UCP.324

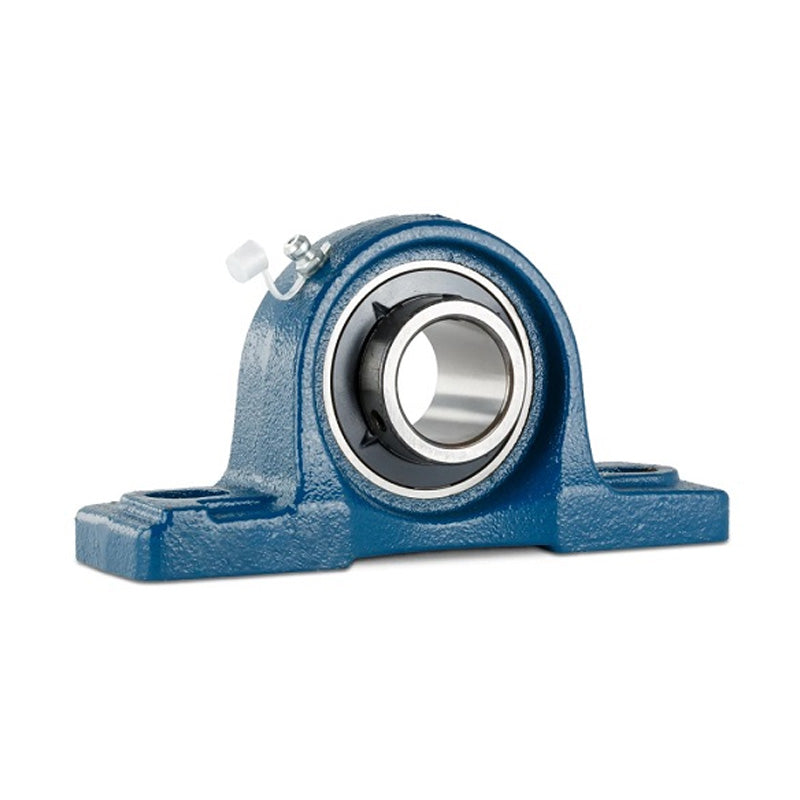

UCP324 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 120mm Bore Insert
- Regular price
- CHF 896.00 ex VAT
- Sale price
- CHF 896.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 797.44
19+
CHF 752.64
29+
CHF 743.68
39+
CHF 734.72
49+
CHF 725.76
74+
CHF 716.80
99+
CHF 672.00
199+
CHF 663.04
249+
CHF 654.08
499+
CHF 645.12
999+
CHF 627.20
SKU:
UCP.324
UCP324 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 120mm Bore Insert
- Regular price
- CHF 896.00 ex VAT
- Sale price
- CHF 896.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 120mm |
| h | = | 160mm |
| a | = | 570mm |
| e | = | 450mm |
| b | = | 140mm |
| s2 | = | 55mm |
| s1 | = | 40mm |
| g | = | 50mm |
| w | = | 316mm |
| b1 | = | 126mm |
| n | = | 51mm |
| Bolt | = | 33mm |
| Weight | = | 54 kg |
| Dynamic load | = | 20700 kgf |
| Static load | = | 18500 kgf |
