SKU: UCP.322

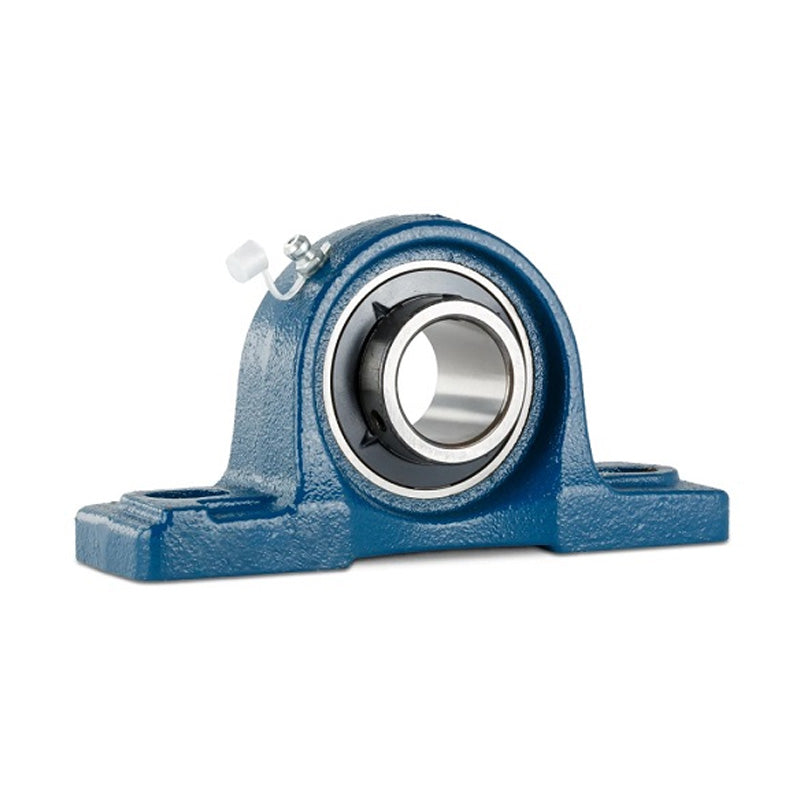

UCP322 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 110mm Bore Insert
- Regular price
- CHF 772.00 ex VAT
- Sale price
- CHF 772.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 687.08
19+
CHF 648.48
29+
CHF 640.76
39+
CHF 633.04
49+
CHF 625.32
74+
CHF 617.60
99+
CHF 579.00
199+
CHF 571.28
249+
CHF 563.56
499+
CHF 555.84
999+
CHF 540.40
SKU:
UCP.322
UCP322 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 110mm Bore Insert
- Regular price
- CHF 772.00 ex VAT
- Sale price
- CHF 772.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 110mm |
| h | = | 150mm |
| a | = | 520mm |
| e | = | 400mm |
| b | = | 140mm |
| s2 | = | 55mm |
| s1 | = | 40mm |
| g | = | 50mm |
| w | = | 296mm |
| b1 | = | 117mm |
| n | = | 46mm |
| Bolt | = | 33mm |
| Weight | = | 43.2 kg |
| Dynamic load | = | 20500 kgf |
| Static load | = | 17900 kgf |
