SKU: UCP.320

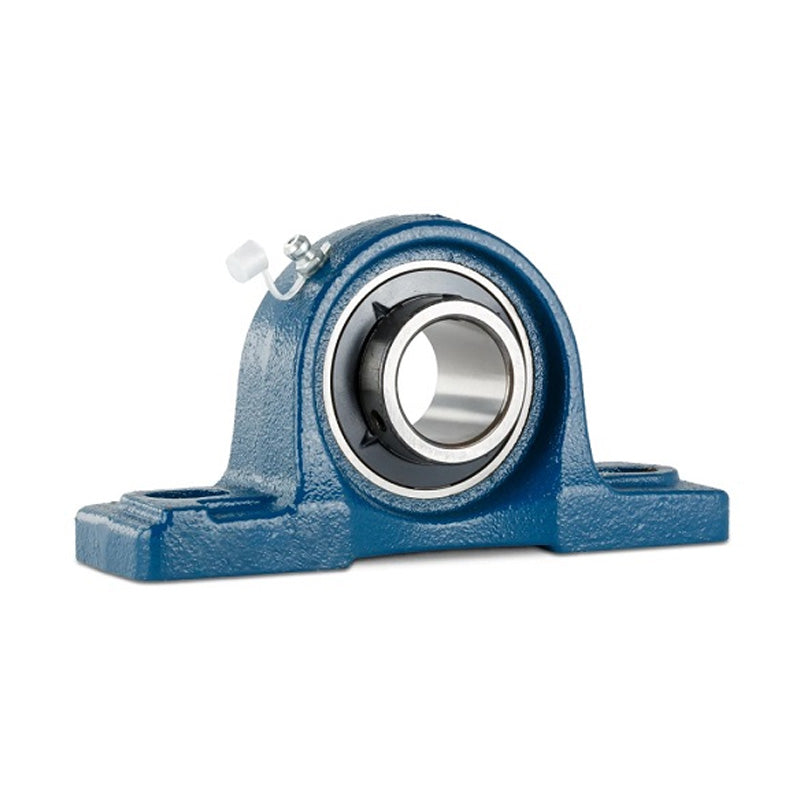

UCP320 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 100mm Bore Insert
- Regular price
- CHF 535.00 ex VAT
- Sale price
- CHF 535.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 476.15
19+
CHF 449.40
29+
CHF 444.05
39+
CHF 438.70
49+
CHF 433.35
74+
CHF 428.00
99+
CHF 401.25
199+
CHF 395.90
249+
CHF 390.55
499+
CHF 385.20
999+
CHF 374.50
SKU:
UCP.320
UCP320 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 100mm Bore Insert
- Regular price
- CHF 535.00 ex VAT
- Sale price
- CHF 535.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 100mm |
| h | = | 140mm |
| a | = | 490mm |
| e | = | 380mm |
| b | = | 120mm |
| s2 | = | 50mm |
| s1 | = | 36mm |
| g | = | 50mm |
| w | = | 275mm |
| b1 | = | 108mm |
| n | = | 42mm |
| Bolt | = | 33mm |
| Weight | = | 34.8 kg |
| Dynamic load | = | 13580 kgf |
| Static load | = | 12860 kgf |
