SKU: UCP.319

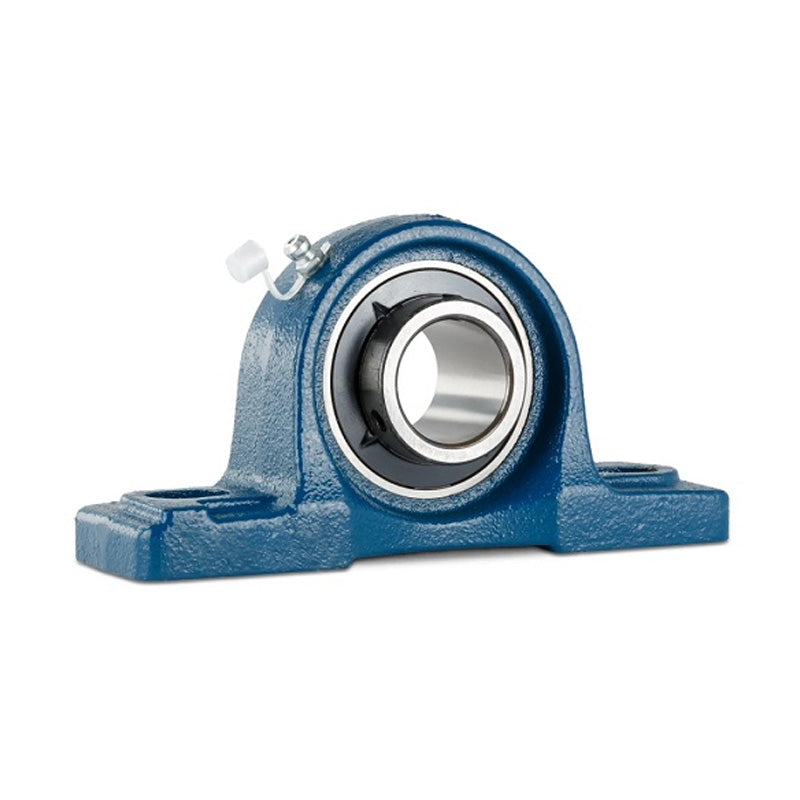

UCP319 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 95mm Bore Insert
- Regular price
- CHF 499.00 ex VAT
- Sale price
- CHF 499.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 444.11
19+
CHF 419.16
29+
CHF 414.17
39+
CHF 409.18
49+
CHF 404.19
74+
CHF 399.20
99+
CHF 374.25
199+
CHF 369.26
249+
CHF 364.27
499+
CHF 359.28
999+
CHF 349.30
SKU:
UCP.319
UCP319 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 95mm Bore Insert
- Regular price
- CHF 499.00 ex VAT
- Sale price
- CHF 499.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 95mm |
| h | = | 125mm |
| a | = | 470mm |
| e | = | 360mm |
| b | = | 120mm |
| s2 | = | 50mm |
| s1 | = | 36mm |
| g | = | 45mm |
| w | = | 250mm |
| b1 | = | 103mm |
| n | = | 41mm |
| Bolt | = | 30mm |
| Weight | = | 28.2 kg |
| Dynamic load | = | 12300 kgf |
| Static load | = | 11600 kgf |
