SKU: UCP.318

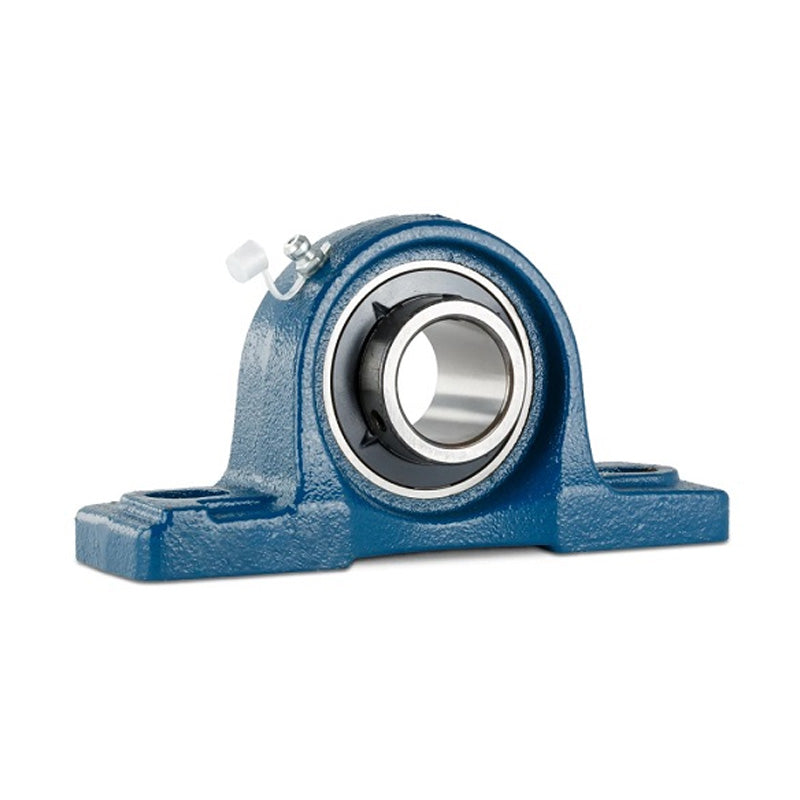

UCP318 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 90mm Bore Insert
- Regular price
- CHF 347.00 ex VAT
- Sale price
- CHF 347.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 308.83
19+
CHF 291.48
29+
CHF 288.01
39+
CHF 284.54
49+
CHF 281.07
74+
CHF 277.60
99+
CHF 260.25
199+
CHF 256.78
249+
CHF 253.31
499+
CHF 249.84
999+
CHF 242.90
SKU:
UCP.318
UCP318 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 90mm Bore Insert
- Regular price
- CHF 347.00 ex VAT
- Sale price
- CHF 347.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 90mm |
| h | = | 118mm |
| a | = | 430mm |
| e | = | 330mm |
| b | = | 110mm |
| s2 | = | 45mm |
| s1 | = | 33mm |
| g | = | 45mm |
| w | = | 235mm |
| b1 | = | 96mm |
| n | = | 40mm |
| Bolt | = | 27mm |
| Weight | = | 21.1 kg |
| Dynamic load | = | 11300 kgf |
| Static load | = | 10300 kgf |
