SKU: UCP.317

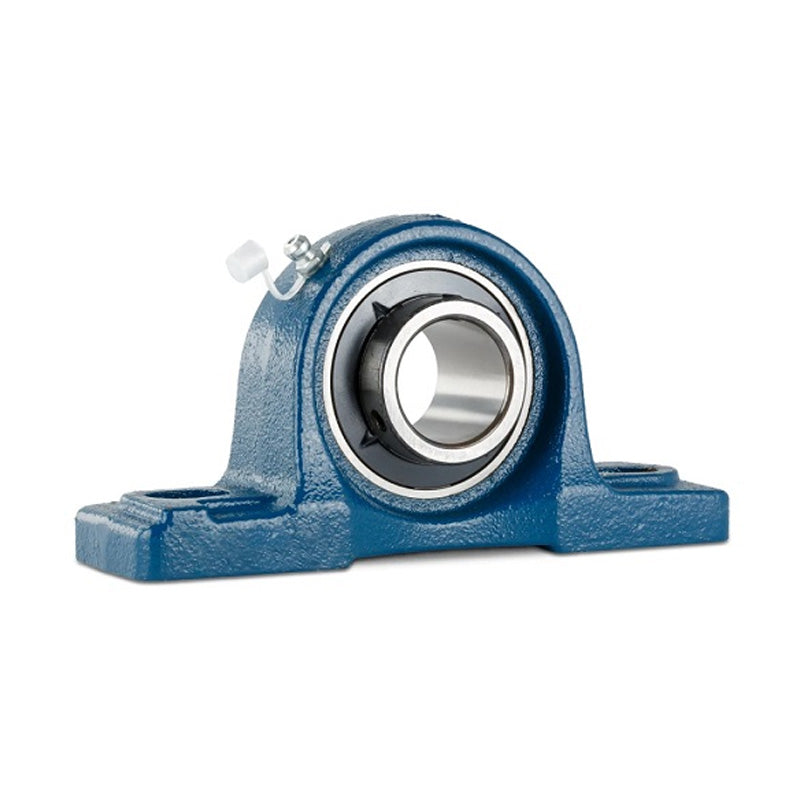

UCP317 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 85mm Bore Insert
- Regular price
- CHF 266.00 ex VAT
- Sale price
- CHF 266.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 236.74
19+
CHF 223.44
29+
CHF 220.78
39+
CHF 218.12
49+
CHF 215.46
74+
CHF 212.80
99+
CHF 199.50
199+
CHF 196.84
249+
CHF 194.18
499+
CHF 191.52
999+
CHF 186.20
SKU:
UCP.317
UCP317 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 85mm Bore Insert
- Regular price
- CHF 266.00 ex VAT
- Sale price
- CHF 266.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 85mm |
| h | = | 112mm |
| a | = | 420mm |
| e | = | 320mm |
| b | = | 110mm |
| s2 | = | 45mm |
| s1 | = | 33mm |
| g | = | 40mm |
| w | = | 220mm |
| b1 | = | 96mm |
| n | = | 40mm |
| Bolt | = | 27mm |
| Weight | = | 19.2 kg |
| Dynamic load | = | 10410 kgf |
| Static load | = | 9130 kgf |
