SKU: UCP.316

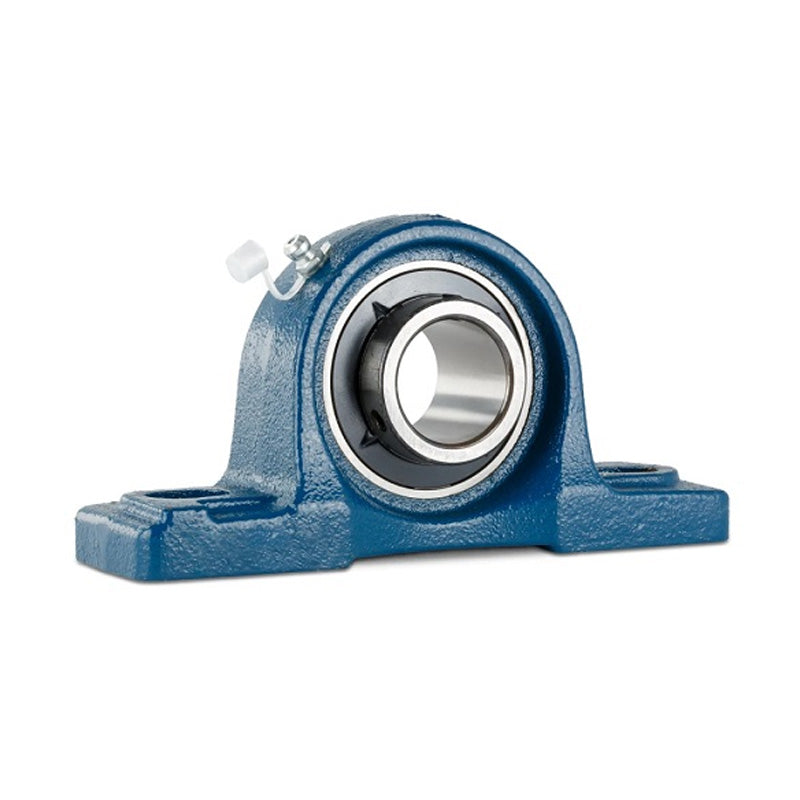

UCP316 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 80mm Bore Insert
- Regular price
- CHF 196.00 ex VAT
- Sale price
- CHF 196.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 174.44
19+
CHF 164.64
29+
CHF 162.68
39+
CHF 160.72
49+
CHF 158.76
74+
CHF 156.80
99+
CHF 147.00
199+
CHF 145.04
249+
CHF 143.08
499+
CHF 141.12
999+
CHF 137.20
SKU:
UCP.316
UCP316 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 80mm Bore Insert
- Regular price
- CHF 196.00 ex VAT
- Sale price
- CHF 196.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 80mm |
| h | = | 106mm |
| a | = | 400mm |
| e | = | 300mm |
| b | = | 100mm |
| s2 | = | 40mm |
| s1 | = | 27mm |
| g | = | 40mm |
| w | = | 210mm |
| b1 | = | 86mm |
| n | = | 34mm |
| Bolt | = | 22mm |
| Weight | = | 17.1 kg |
| Dynamic load | = | 9650 kgf |
| Static load | = | 8330 kgf |
