SKU: UCP.315

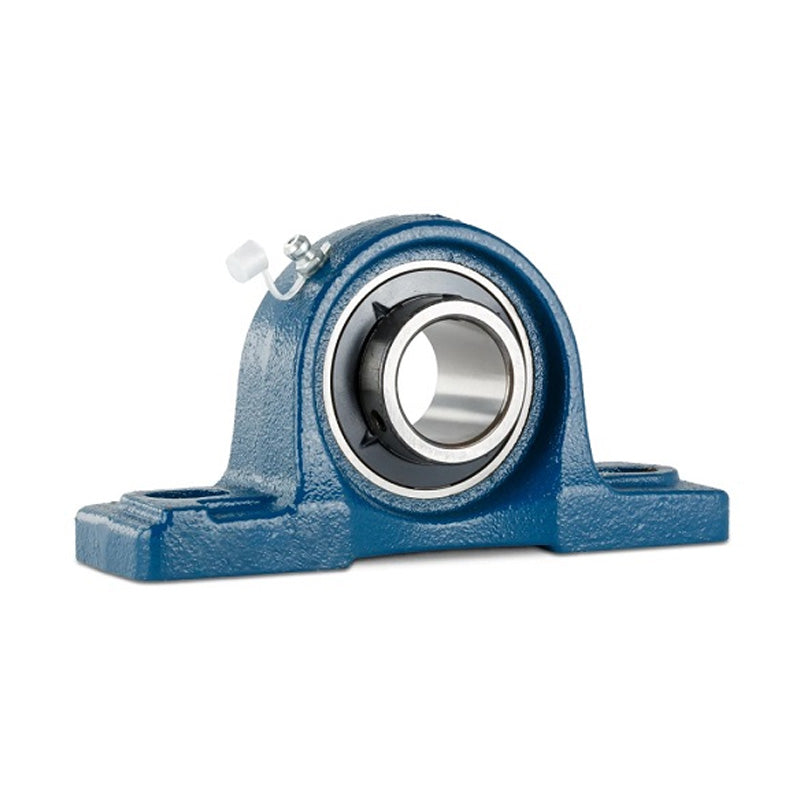

UCP315 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 75mm Bore Insert
- Regular price
- CHF 163.00 ex VAT
- Sale price
- CHF 163.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 145.07
19+
CHF 136.92
29+
CHF 135.29
39+
CHF 133.66
49+
CHF 132.03
74+
CHF 130.40
99+
CHF 122.25
199+
CHF 120.62
249+
CHF 118.99
499+
CHF 117.36
999+
CHF 114.10
SKU:
UCP.315
UCP315 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 75mm Bore Insert
- Regular price
- CHF 163.00 ex VAT
- Sale price
- CHF 163.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 75mm |
| h | = | 100mm |
| a | = | 380mm |
| e | = | 290mm |
| b | = | 100mm |
| s2 | = | 40mm |
| s1 | = | 27mm |
| g | = | 35mm |
| w | = | 198mm |
| b1 | = | 82mm |
| n | = | 32mm |
| Bolt | = | 22mm |
| Weight | = | 14.5 kg |
| Dynamic load | = | 8900 kgf |
| Static load | = | 7310 kgf |
