SKU: UCP.314

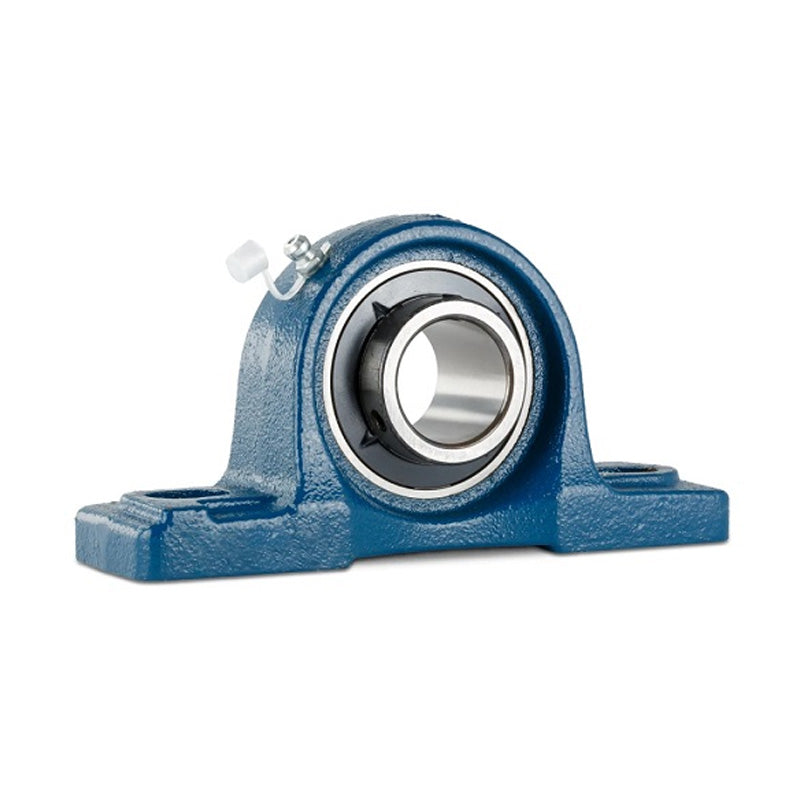

UCP314 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 70mm Bore Insert
- Regular price
- CHF 136.00 ex VAT
- Sale price
- CHF 136.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 121.04
19+
CHF 114.24
29+
CHF 112.88
39+
CHF 111.52
49+
CHF 110.16
74+
CHF 108.80
99+
CHF 102.00
199+
CHF 100.64
249+
CHF 99.28
499+
CHF 97.92
999+
CHF 95.20
SKU:
UCP.314
UCP314 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 70mm Bore Insert
- Regular price
- CHF 136.00 ex VAT
- Sale price
- CHF 136.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 70mm |
| h | = | 95mm |
| a | = | 360mm |
| e | = | 280mm |
| b | = | 90mm |
| s2 | = | 40mm |
| s1 | = | 27mm |
| g | = | 35mm |
| w | = | 187mm |
| b1 | = | 78mm |
| n | = | 33mm |
| Bolt | = | 22mm |
| Weight | = | 11.9 kg |
| Dynamic load | = | 8170 kgf |
| Static load | = | 6480 kgf |
