SKU: UCP.313

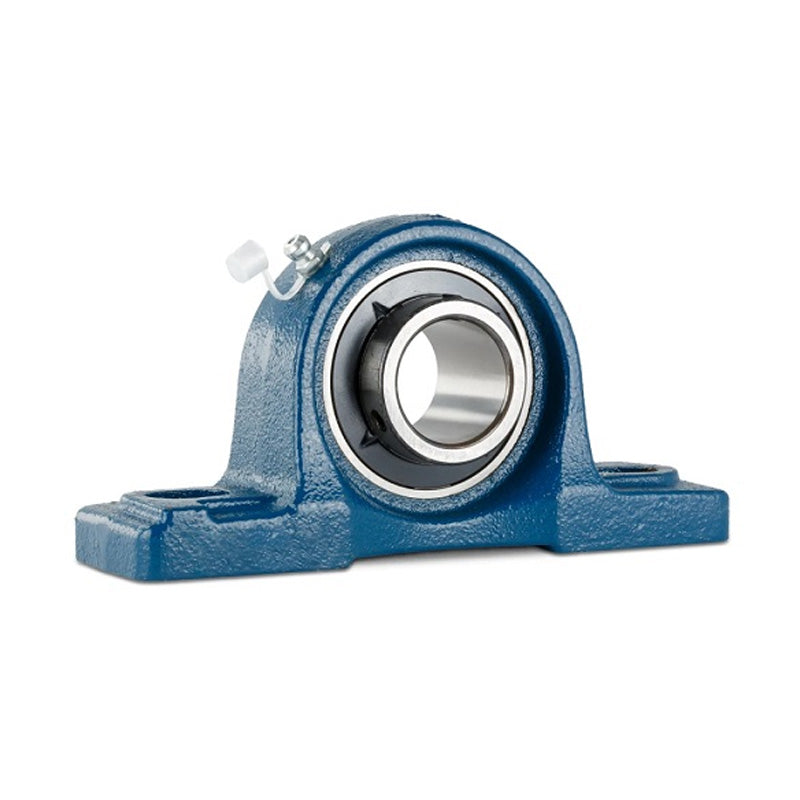

UCP313 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 65mm Bore Insert
- Regular price
- CHF 115.00 ex VAT
- Sale price
- CHF 115.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 102.35
19+
CHF 96.60
29+
CHF 95.45
39+
CHF 94.30
49+
CHF 93.15
74+
CHF 92.00
99+
CHF 86.25
199+
CHF 85.10
249+
CHF 83.95
499+
CHF 82.80
999+
CHF 80.50
SKU:
UCP.313
UCP313 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 65mm Bore Insert
- Regular price
- CHF 115.00 ex VAT
- Sale price
- CHF 115.00
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 65mm |
| h | = | 90mm |
| a | = | 340mm |
| e | = | 260mm |
| b | = | 90mm |
| s2 | = | 38mm |
| s1 | = | 25mm |
| g | = | 35mm |
| w | = | 176mm |
| b1 | = | 75mm |
| n | = | 30mm |
| Bolt | = | 20mm |
| Weight | = | 10.3 kg |
| Dynamic load | = | 7370 kgf |
| Static load | = | 5780 kgf |
