SKU: UCP.209-27
UCP209-27 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Bore Insert
- Regular price
- CHF 30.00 ex VAT
- Sale price
- CHF 30.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 26.70
19+
CHF 25.20
29+
CHF 24.90
39+
CHF 24.60
49+
CHF 24.30
74+
CHF 24.00
99+
CHF 22.50
199+
CHF 22.20
249+
CHF 21.90
499+
CHF 21.60
999+
CHF 21.00
SKU:
UCP.209-27
UCP209-27 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Bore Insert
- Regular price
- CHF 30.00 ex VAT
- Sale price
- CHF 30.00
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |

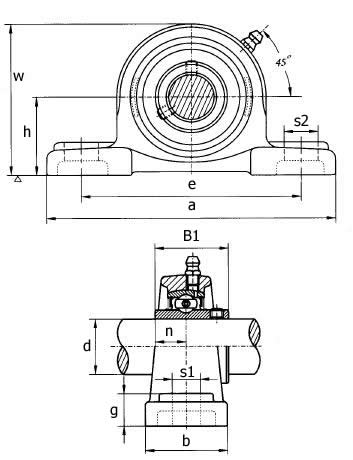

Technical
| d | = | 1-11/16 inch |
| h | = | 54mm |
| a | = | 190mm |
| e | = | 146mm |
| b | = | 54mm |
| s2 | = | 21mm |
| s1 | = | 17mm |
| g | = | 20mm |
| w | = | 106mm |
| B1 | = | 49.2mm |
| n | = | 19mm |
| Bolt Size | = | M14 |
| Weight | = | 2.2 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 3700 rpm |
