SKU: UCLP210-32

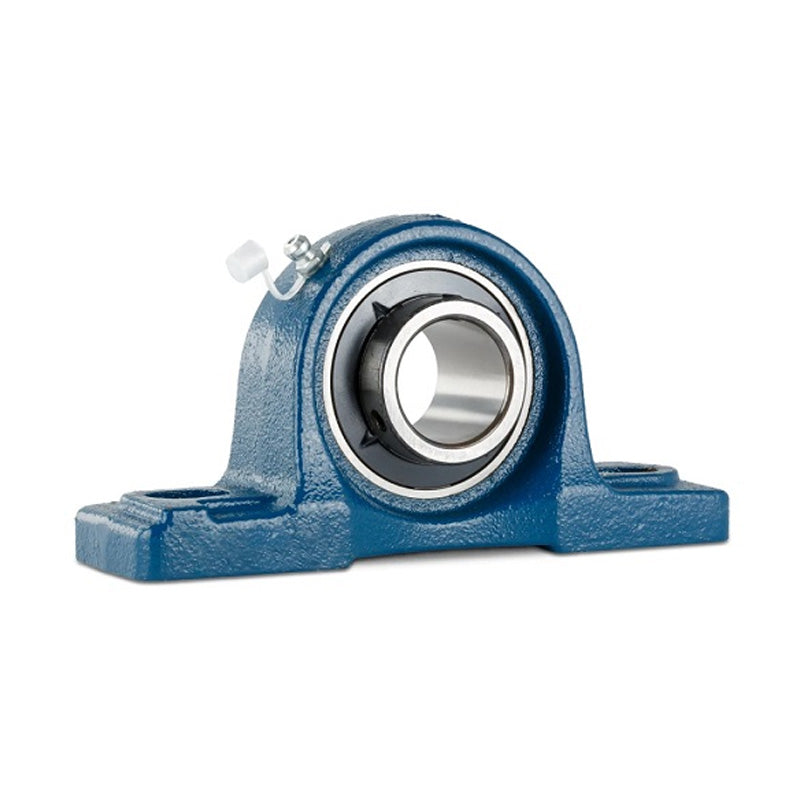

UCLP210-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Insert
- Regular price
- CHF 48.00 ex VAT
- Sale price
- CHF 48.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 42.72
4
CHF 40.32
9
CHF 39.84
19
CHF 39.36
49
CHF 38.88
99
CHF 38.40
499
CHF 36.00
999
CHF 35.52
1999
CHF 35.04
2999
CHF 34.56
4999
CHF 33.60
SKU:
UCLP210-32
UCLP210-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Insert
- Regular price
- CHF 48.00 ex VAT
- Sale price
- CHF 48.00
- Regular price
-
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 2 inch |
| h | = | 2-3/16 inch |
| a | = | 8-1/8 inch |
| e | = | 6-1/4 inch |
| b | = | 2-3/8 inch |
| s1 | = | 25/32 inch |
| s2 | = | 29/32 inch |
| g | = | 53/64 inch |
| w | = | 4-13/32 inch |
| B | = | 2.0315 inch |
| n | = | 0.748 inch |
| Bolt size | = | 5/8 inch |
| Bearing no | = | UC210-32 |
| Housing no | = | LP210 |
| Weight | = | 2.58 kg |
