SKU: UCF.322
UCF322 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert
- Regular price
- CHF 741.00 ex VAT
- Sale price
- CHF 741.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 659.49
19+
CHF 622.44
29+
CHF 615.03
39+
CHF 607.62
49+
CHF 600.21
74+
CHF 592.80
99+
CHF 555.75
199+
CHF 548.34
249+
CHF 540.93
499+
CHF 533.52
999+
CHF 518.70
SKU:
UCF.322
UCF322 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert
- Regular price
- CHF 741.00 ex VAT
- Sale price
- CHF 741.00
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |

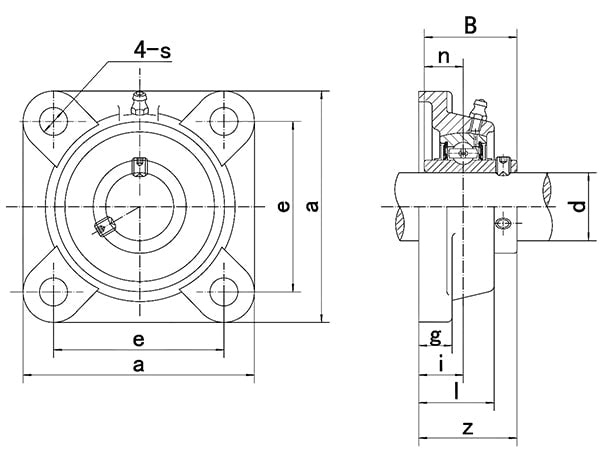

Technical
| d | = | 110mm |
| a | = | 340mm |
| e | = | 266mm |
| i | = | 60mm |
| g | = | 35mm |
| l | = | 96mm |
| s | = | 41mm |
| z | = | 131mm |
| B | = | 117mm |
| n | = | 46mm |
| Bolt size | = | M36 |
| Bearing no. | = | UC322 |
| Housing no. | = | F322 |
| Weight | = | 34.9 kg |
