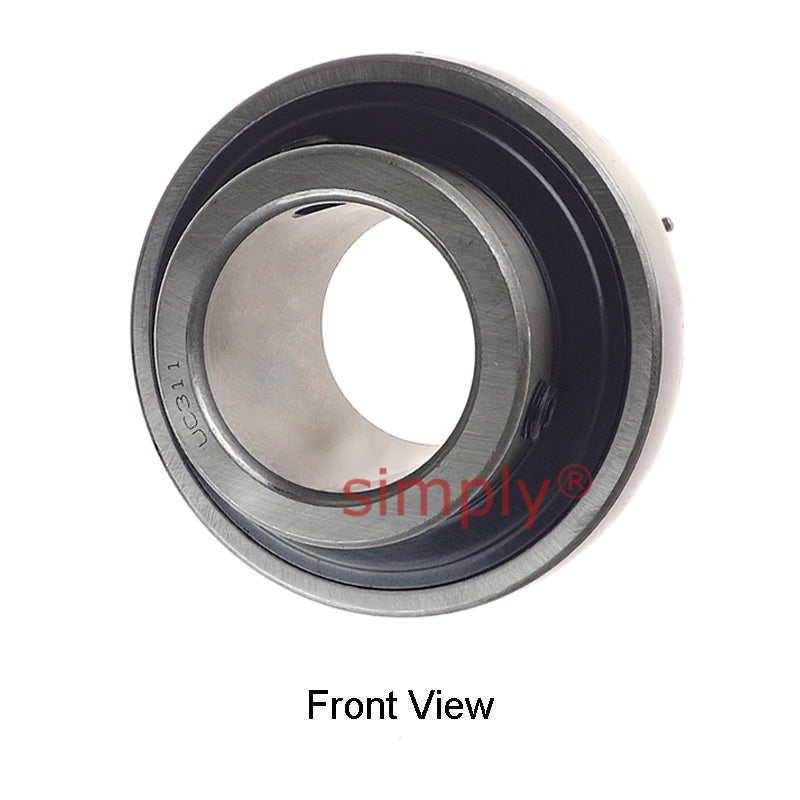

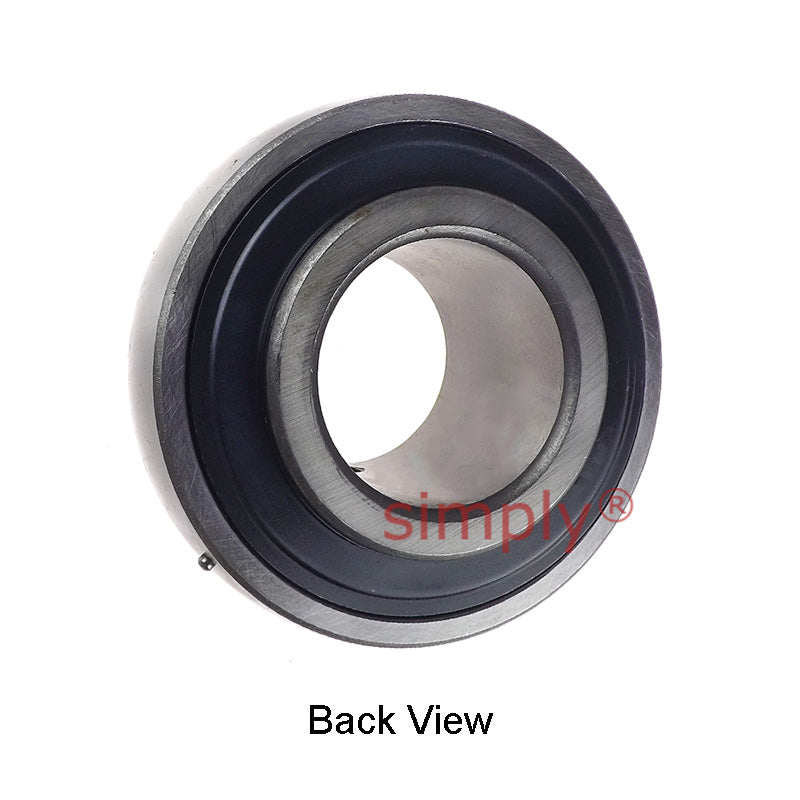

UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia
UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia
UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia
UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia

SKU: UC.311

UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia

CHF 47.00 ex VAT
CHF 47.00
ex VAT
In stock

Quantity Price Breaks

10+ CHF 41.83
19+ CHF 39.48
29+ CHF 39.01
39+ CHF 38.54
49+ CHF 38.07
74+ CHF 37.60
99+ CHF 35.25
199+ CHF 34.78
249+ CHF 34.31
499+ CHF 33.84
999+ CHF 32.90
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia
UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia
SKU: UC.311

UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia

CHF 47.00 ex VAT
CHF 47.00
ex VAT

Description

UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

d = 55mm
D = 120mm
Bi = 66mm
Be = 34mm
n = 25mm
m = 41mm
G = 12mm
Grub screw = M12x1.5
Weight = 1.90 kg
Dynamic load = 5260 kgf
Static load = 4280 kgf
