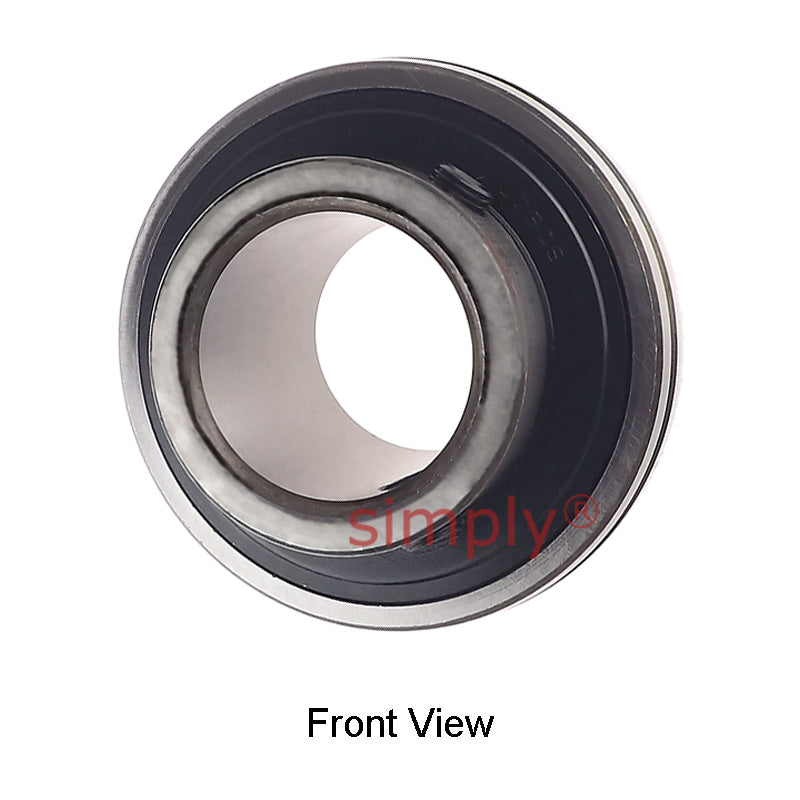

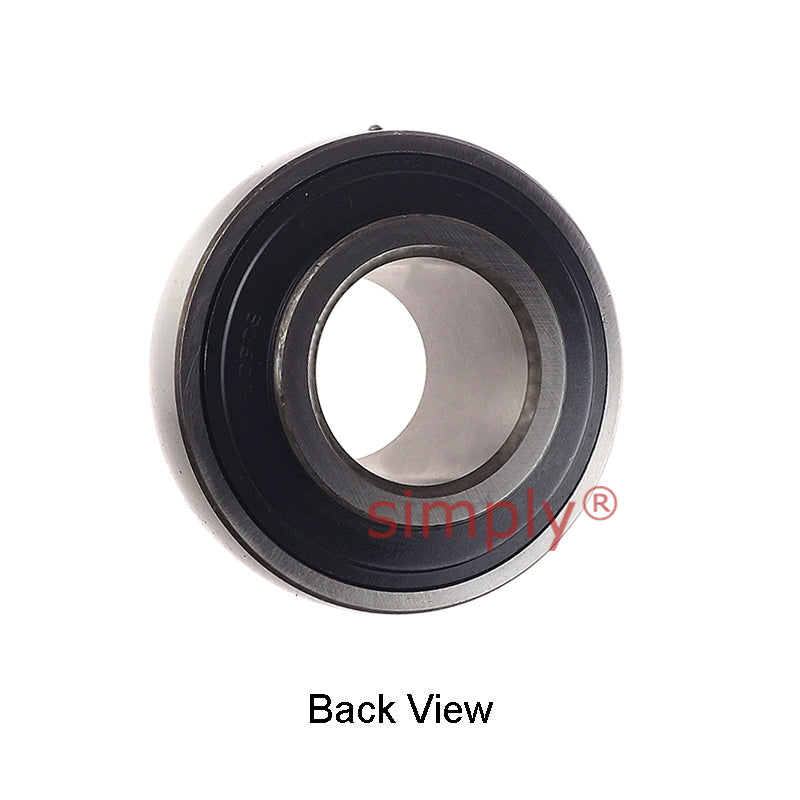

UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia
UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia
UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia
UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia

SKU: UC.308

UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia

CHF 30.00 ex VAT
CHF 30.00
ex VAT
In stock

Quantity Price Breaks

10+ CHF 26.70
19+ CHF 25.20
29+ CHF 24.90
39+ CHF 24.60
49+ CHF 24.30
74+ CHF 24.00
99+ CHF 22.50
199+ CHF 22.20
249+ CHF 21.90
499+ CHF 21.60
999+ CHF 21.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia
UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia
SKU: UC.308

UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia

CHF 30.00 ex VAT
CHF 30.00
ex VAT

Description

UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

d = 40mm
D = 90mm
Bi = 52mm
Be = 28mm
n = 19mm
m = 33mm
G = 10mm
Grub screw = M10x1.25
Weight = 1.00 kg
Dynamic load = 3200 kgf
Static load = 2280 kgf
