SKU: UC.218

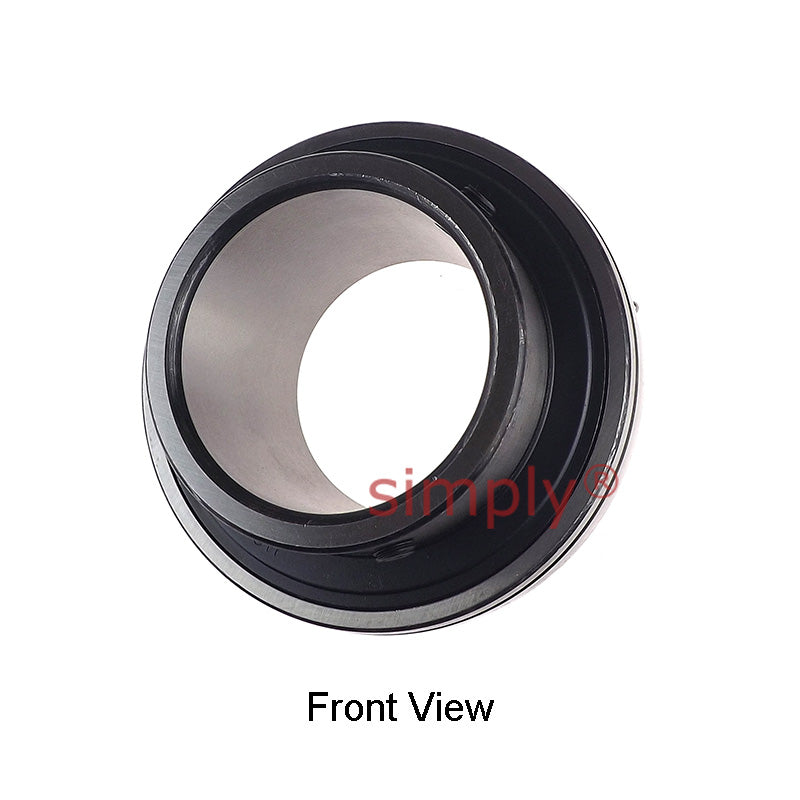

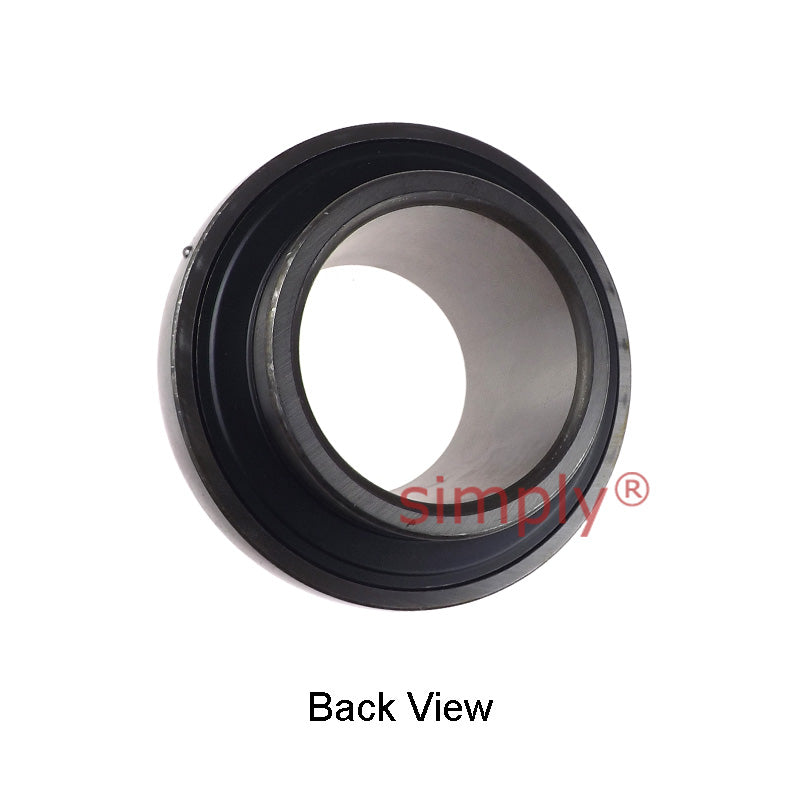

UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
- Regular price
- CHF 159.00 ex VAT
- Sale price
- CHF 159.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 141.51
19+
CHF 133.56
29+
CHF 131.97
39+
CHF 130.38
49+
CHF 128.79
74+
CHF 127.20
99+
CHF 119.25
199+
CHF 117.66
249+
CHF 116.07
499+
CHF 114.48
999+
CHF 111.30
SKU:
UC.218
UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
- Regular price
- CHF 159.00 ex VAT
- Sale price
- CHF 159.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 90mm |
| D | = | 160mm |
| Bi | = | 96mm |
| Be | = | 37mm |
| n | = | 39.7mm |
| m | = | 56.3mm |
| G | = | 14mm |
| Grub screw | = | M12x1.5 |
| Weight | = | 4.35 kg |
| Dynamic load | = | 7500 kgf |
| Static load | = | 6170 kgf |
