SKU: UC.215-48

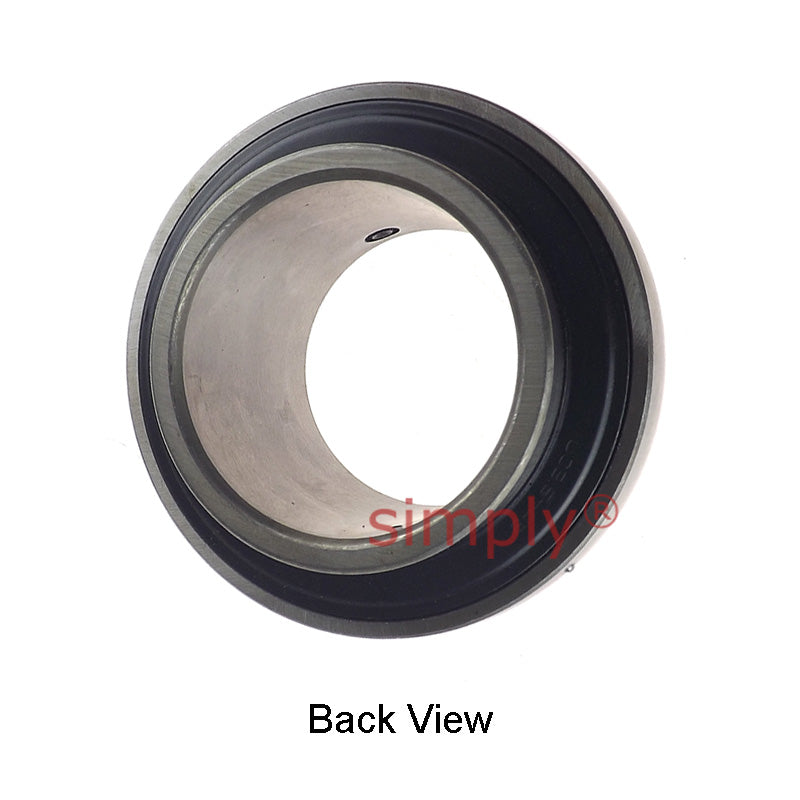

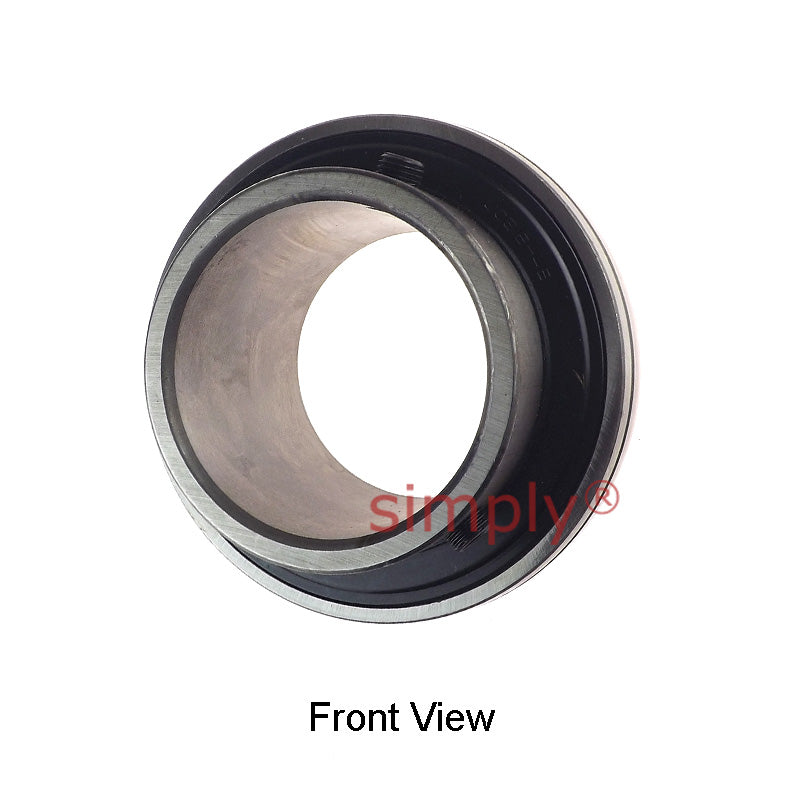

UC215-48 Imperial Bearing Insert with 3 inch Bore 130mm Outside Dia
- Regular price
- CHF 80.00 ex VAT
- Sale price
- CHF 80.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 71.20
19+
CHF 67.20
29+
CHF 66.40
39+
CHF 65.60
49+
CHF 64.80
74+
CHF 64.00
99+
CHF 60.00
199+
CHF 59.20
249+
CHF 58.40
499+
CHF 57.60
999+
CHF 56.00
SKU:
UC.215-48
UC215-48 Imperial Bearing Insert with 3 inch Bore 130mm Outside Dia
- Regular price
- CHF 80.00 ex VAT
- Sale price
- CHF 80.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 3 inch |
| D | = | 130mm |
| Bi | = | 77.8mm |
| Be | = | 30mm |
| n | = | 33.3mm |
| m | = | 44.5mm |
| G | = | 12mm |
| Grub screw | = | 7/16" |
| -20 UNF | = | Weight |
| 2.12 kg | = | Dynamic load |
| 5190 kgf | = | Static load |
| 4190 kgf | = | N/A |
